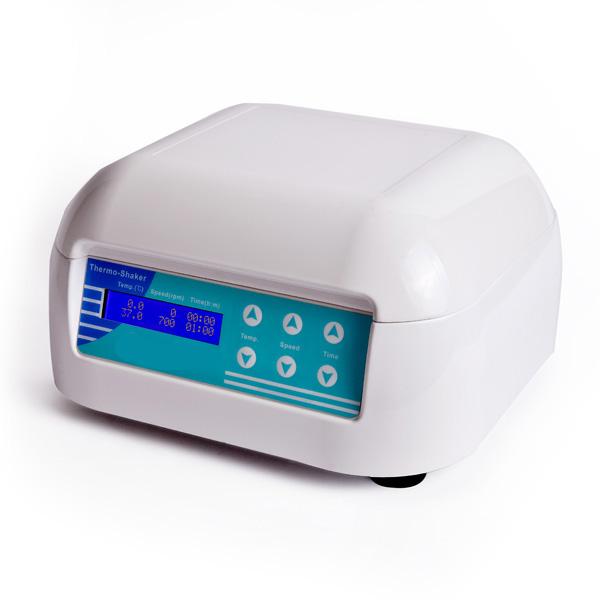

Micro-Plate Shaker Incubator ST60-4

Product description:
ST60-4 Micro-Plate shaker incubator adopts micro processing techniques combined with PID control. Small size, low noise, elegant appearance, simple operation. Mainly used in micro plates, cell culture plate solution which is mixed or incubated at proper temperature..

Product features:
1. LCD display, set and actual temperature display simultaneously, time and shaking speed.
2. User friendly touch operation interface, the streamlined fuselage, beautiful appearance, convenient cleaning.
3. Two-side heating of micro plates that allows achieving exact correspondence of the set and actual temperature in wells of the micro plates.
4. The microprocessor controls the time and temperature, good linearity, temperature oscillation speed accuracy, small fluctuation.
5. Can configure 4 standard microtiter plates and plates, alarm signal after operation ends.
6. Power restore function, equipment can restore to operate as the original set automatically.
7. DC brushless motor drive, long service life, free of maintenance.

Technical parameters:

Model	ST70-2 Micro-Plate Incubator	ST60-4 Micro-Plate Incubator
Temperature Control Range	RT+5°C - 70°C
Block Temperature Uniformity	≤ ±0.5°C
Temperature Control Accuracy	≤ ±0.2°C
Heating Platform Temperature Accuracy	<0.3°C @37°C
Heating Time	<25 min (from 20°C to 70°C)
Timing Range	0 - 99h59min
Capacity	2 pieces of plates	4 pieces of plates
Shaking Speed	300-1200 rpm
Shaking Orbit	3mm （horizontal）	2mm （horizontal）
Power	150W	250W
Dimension (LxWxH)	284 x 264 x 157mm	345 x 310 x 178mm

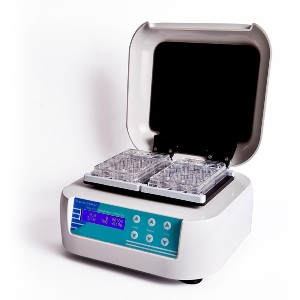

Micro-Plate shaker incubator ST70-2

Product description:
ST70-2 Micro-Plate shaker incubator adopts micro processing techniques combined with PID control. Small size, low noise, elegant appearance, simple operation. Mainly used in micro plates, cell culture plate solution which is mixed or incubated at proper temperature

Technical parameters:

Model	ST70-2 Micro-Plate Incubator	ST60-4 Micro-Plate Incubator
Temperature Control Range	RT+5°C - 70°C
Block Temperature Uniformity	≤ ±0.5°C
Temperature Control Accuracy	≤ ±0.2°C
Heating Platform Temperature Accuracy	<0.3°C @37°C
Heating Time	<25 min (from 20°C to 70°C)
Timing Range	0 - 99h59min
Capacity	2 pieces of plates	4 pieces of plates
Shaking Speed	300-1200 rpm
Shaking Orbit	3mm （horizontal）	2mm （horizontal）
Power	150W	250W
Dimension (LxWxH)	284 x 264 x 157mm	345 x 310 x 178mm

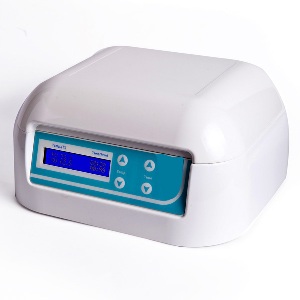

Micro-Plate Incubator MT60-4

Product description:
MT60-4 Micro-plate incubator is a well-designed micro processing techniques incubator which well combined with PID controlling. It is mainly used for solution incubation of ELISA plate (96-/384-well), cell culture plate (24-/48-/96-well) at proper temperature.

Product features:
1. LCD display. Setting temperature and actual temperature simultaneously displayed. Diminishing time displayed.
2. Friendly human-machine operation interface. Streamline shape, pretty and elegant. Convenient for cleaning.
3. Uniformly upper & down heating for samples in micro plates. The experiment effect is exact correspondence of the setting and actual temperature.
4. Microprocessor controlling time and temperature. Good linearity of temperature control.
5. Four standard plates configured. Alarm signals when operation completes.

Technical parameters:

Model	MT70-2 Micro-Plate Incubator	MT60-4 Micro-Plate Incubator
Temperature Control Range	RT+5°C - 70°C
Block Temperature Uniformity	≤ ±0.5°C
Temperature Control Accuracy	≤ ±0.2°C
Heating Platform Temperature Accuracy	<0.3°C @37°C
Heating Time	<25 min (from 20°C to 70°C)
Timing Range	0 - 99h59min
Capacity	2 pieces of plates	4 pieces of plates
Power	150W	250W
Dimension (LxWxH)	284 x 264 x 157mm	345 x 310 x 178mm

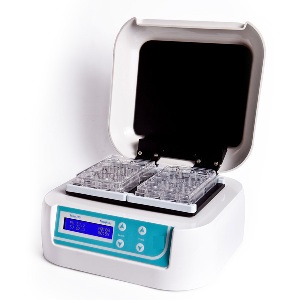

Micro-Plate Incubator MT70-2

Product description:
MT70-2 Micro-plate incubator is a well-designed micro processing techniques incubator which well combined with PID controlling. It is mainly used for solution incubation of ELISA plate (96-/384-well), cell culture plate (24-/48-/96-well) at proper temperature.

Technical parameters:

Model	MT70-2 Micro-Plate Incubator	MT60-4 Micro-Plate Incubator
Temperature Control Range	RT+5°C - 70°C
Block Temperature Uniformity	≤ ±0.5°C
Temperature Control Accuracy	≤ ±0.2°C
Heating Platform Temperature Accuracy	<0.3°C @37°C
Heating Time	<25 min (from 20°C to 70°C)
Timing Range	0 - 99h59min
Capacity	2 pieces of plates	4 pieces of plates
Power	150W	250W
Dimension (LxWxH)	284 x 264 x 157mm	345 x 310 x 178mm

Mini Dry Bath Incubator MiniB-100

Product description:
The mini dry bath is a micro-processor controlled heating block with heater (heating types) or semiconductor refrigeration (cooling types) technology. It adapts onboard use, smart, light and convenient for movement, suit for any kind of occasions. The type 100F is with fan for heat dissipation, which makes temperature down much faster than nature cooling.

Product features:
1. Unique designed. Smart and light, convenient movement, suit for various occasions.
2. LCD simultaneously display setting and actual time and temperature. Temperature calibration function.
3. Automatic fault detection function with buzzer alarm.
4. 24V DC input power, built-in over-temperature protection device.
5. Various of blocks for optional choice. Convenient for replacement. Easy cleaning and disinfection.

Product technical parameters:

Model	MINIB-100F	MINIB-100	MINIB-100I	MINIC-100	MINIC-100I
Temperature Control Range	R.T.+5°C ~100°C			-10°C ~100°C
Temp. Control Accuracy@100°C	≤±0.5°C
Block Temp Difference@40°C	0.3°C
Block Temp. Uniformity	≤±0.3°C
Display Accuracy	0.1°C
Timing Range	0-999min
Max. Temp	100°C
Max. Power	60W			120W
Cooling Time	fan cooling	natural cooling		≤30min (from R.T. to R.T.-20°C)
Net Weight	≤1.0kg			≤1.4kg
With Thermo Lid	NO	NO	YES	NO	YES
Block Selection	Refer to ”Exchangeable Blocks for Mini Dry Bath Series”

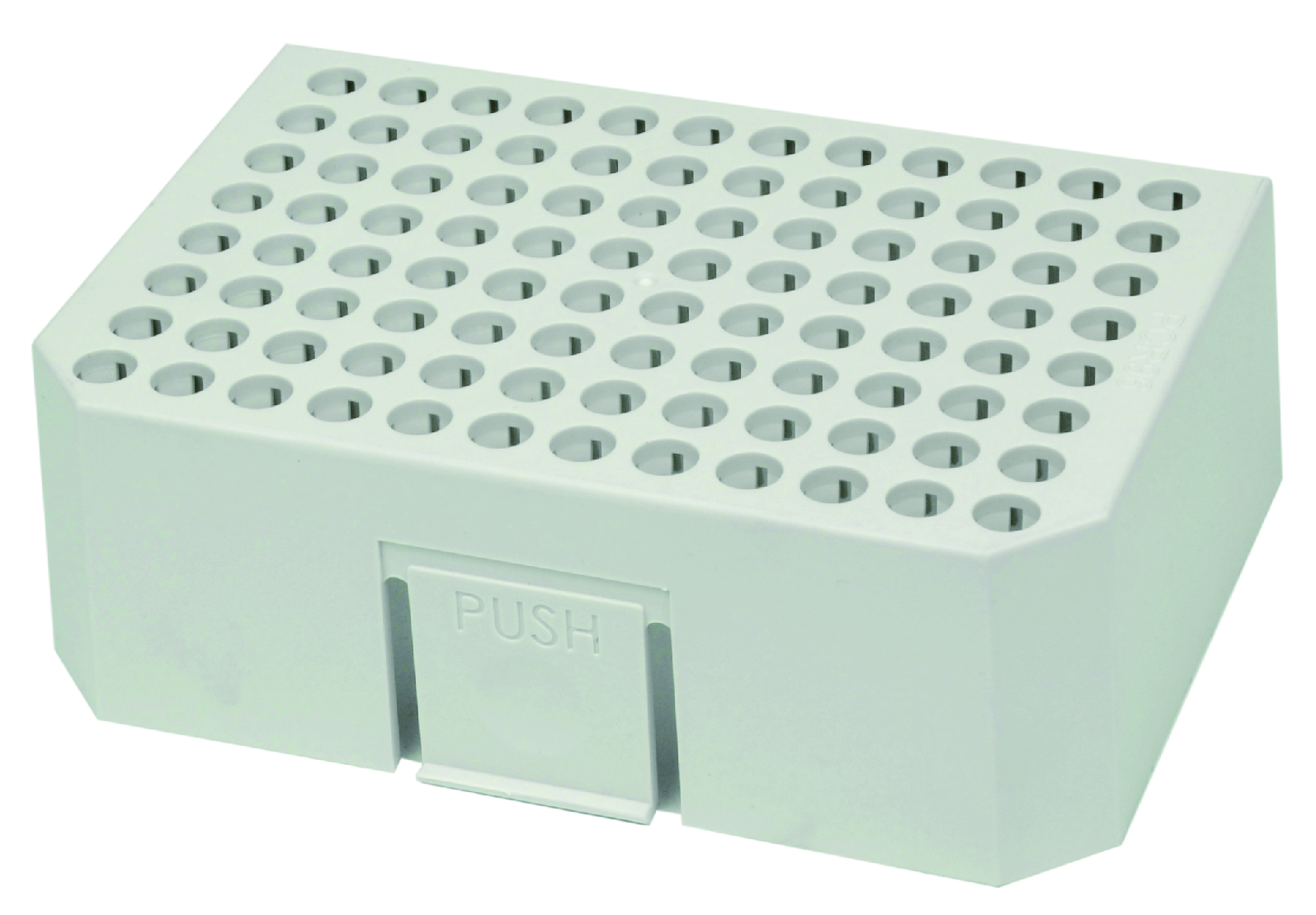

Exchangeable Blocks For Mini Series

Product technical parameters:

Type	Dimension	Description	Remark
MINI-A	0.2ml tube	40×0.2ml	8x0.2ml strip
MINI-B	0.5ml tube	24×0.5ml
MINI-C	1.5ml tube	15×1.5ml
MINI-D	2.0ml tube	15×2.0ml
MINI-E	cuvette	8~12.5×12.5mm
MINI-F	15ml tube	4x15ml	cover cannot be closed
MINI-G	50ml tube	2x50ml	cover cannot be closed
Customized blocks

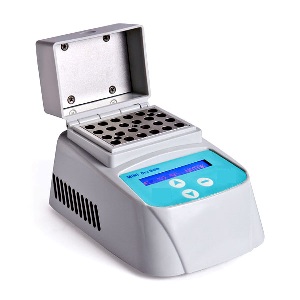

Mini Dry Bath Incubator (with thermo lid) MiniB-100I

Product technical parameters:

Model	MINIB-100F	MINIB-100	MINIB-100I	MINIC-100	MINIC-100I
Temperature Control Range	R.T.+5°C ~100°C			-10°C ~100°C
Temp. Control Accuracy@100°C	≤±0.5°C
Block Temp Difference@40°C	0.3°C
Block Temp. Uniformity	≤±0.3°C
Display Accuracy	0.1°C
Timing Range	0-999min
Max. Temp	100°C
Max. Power	60W			120W
Cooling Time	fan cooling	natural cooling		≤30min (from R.T. to R.T.-20°C)
Net Weight	≤1.0kg			≤1.4kg
With Thermo Lid	NO	NO	YES	NO	YES
Block Selection	Refer to ”Exchangeable Blocks for Mini Dry Bath Series”

Mini Dry Bath Incubator (cooling fan) MiniB-100F

Product technical parameters:

Model	MINIB-100F	MINIB-100	MINIB-100I	MINIC-100	MINIC-100I
Temperature Control Range	R.T. +5°C ~100°C			-10°C ~100°C
Temp. Control Accuracy@100°C	≤±0.5°C
Block Temp Difference@40°C	0.3°C
Block Temp. Uniformity	≤±0.3°C
Display Accuracy	0.1°C
Timing Range	0-999min
Max. Temp	100°C
Max. Power	60W			120W
Cooling Time	fan cooling	natural cooling		≤30min (from R.T. to R.T.-20°C)
Net Weight	≤1.0kg			≤1.4kg
With Thermo Lid	NO	NO	YES	NO	YES
Block Selection	Refer to ”Exchangeable Blocks for Mini Dry Bath Series”

Mini Dry Bath Incubator (cooling) MiniC-100

Product technical parameters:

Model	MINIB-100F	MINIB-100	MINIB-100I	MINIC-100	MINIC-100I
Temperature Control Range	R.T.+5°C ~100°C			-10°C ~100°C
Temp. Control Accuracy@100°C	≤±0.5°C
Block Temp Difference@40°C	0.3°C
Block Temp. Uniformity	≤±0.3°C
Display Accuracy	0.1°C
Timing Range	0-999min
Max. Temp	100°C
Max. Power	60W			120W
Cooling Time	fan cooling	natural cooling		≤30min (from R.T. to R.T. -20°C)
Net Weight	≤1.0kg			≤1.4kg
With Thermo Lid	NO	NO	YES	NO	YES
Block Selection	Refer to ”Exchangeable Blocks for Mini Dry Bath Series”

Mini Dry Bath Incubator (cooling with thermo lid) MiniC-100I

Product technical parameters:

Model	MINIB-100F	MINIB-100	MINIB-100I	MINIC-100	MINIC-100I
Temperature Control Range	R.T.+5°C ~100°C			-10°C ~100°C
Temp. Control Accuracy@100°C	≤±0.5°C
Block Temp Difference@40°C	0.3°C
Block Temp. Uniformity	≤±0.3°C
Display Accuracy	0.1°C
Timing Range	0-999min
Max. Temp	100°C
Max. Power	60W			120W
Cooling Time	fan cooling	natural cooling		≤30min (from R.T. to R.T.-20°C)
Net Weight	≤1.0kg			≤1.4kg
With Thermo Lid	NO	NO	YES	NO	YES
Block Selection	Refer to ”Exchangeable Blocks for Mini Dry Bath Series”

Dry Bath Incubator DKT200-1

Product description:
DKT200-1 Dry bath incubator is a microprocessor-controlled device, high precision of temperature control, sample preparation parallelism, as an alternative to the traditional water bath device. It can be widely used in various samples of the cultivation, preservation and reaction. Application of industry includes the pharmaceutical, chemical, food safety, environment, quality inspection.

Product features:
1. LCD display. Cool and compact designed appearance.
2. Fast heating speed, uniform heating, accurate temperature control, high stability, low energy consumption and no noise.
3. Built in temperature calibration function, automatic fault detection and buzzer alarm function.
4. Built in over-temperature protection device, safe and reliable, enhance the service life of the machine.
5. Product designed compact and tight, occupied little space, free and easy.
6. Various blocks for convenient replacement, easy for cleaning and disinfection.

Product technical parameters:

Model Specifications	DKT200-1	DKT200-2	DKT200-4
Temperature Control Range	R.T.+5°C - 150°C		R.T.+5°C - 120°C
Heating Time	≤ 30min (20°C to 150°C)		≤ 30min (20°C to 120°C)
Temperature Control Accuracy@100~150°C	≤ ±1°C
Temperature Control Accuracy @40~100°C	≤ ±0.5°C
Block Temp Discrepancy@40°C	≤ 0.3°C
Block Temperature Uniformity	≤ ±0.5°C
Display Accuracy	0.1°C
Timing Range	99h59min
Maximum Temperature	150°C		120°C
Maximum Power	200W	400W	600W
Dimension (mm)	230x220x95	260x220x95	360x220x95
Block Selection	Refer to “Exchangeable blocks for DKT series”

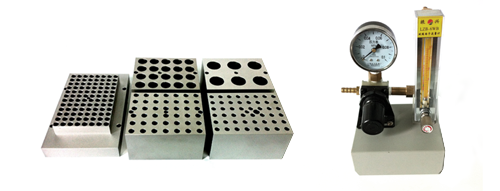

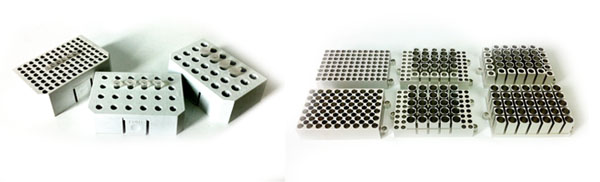

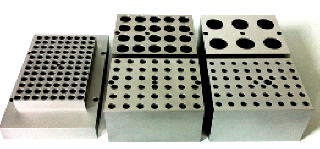

Exchangeable Blocks for DKT Series

Product technical parameters:

Type	Parameter	Capacity	Dimension (mm)
DT01	6mm	42	95.5X76.5X50
DT02	7mm	42	95.5X76.5X50
DT03	10mm	20	95.5X76.5X50
DT04	12mm	20	95.5X76.5X50
DT05	13mm	20	95.5X76.5X50
DT06	15mm	12	95.5X76.5X50
DT07	16mm	12	95.5X76.5X50
DT08	19mm	12	95.5X76.5X50
DT09	20mm	6	95.5X76.5X50
DT10	26mm	6	95.5X76.5X50
DT11	28mm	4	95.5X76.5X50
DT12	40mm	2	95.5X76.5X50
DT13	0.5mL	42	95.5X76.5X50
DT14	1.5mL	24	95.5X76.5X50
DT15	2.0mL	24	95.5X76.5X50
DT16	0.2mL	48	95.5X76.5X50
DT17	0.2mL	96	78X114X26
DT18	Plate (no holes)	96 micro-plate	81X123X19
DT19	Customized	Customized	Customized

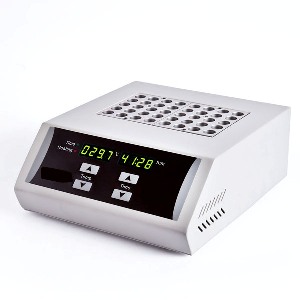

Dry Bath Incubator DKT200-2

Product description:
DKT200-2 Dry bath incubator is a microprocessor-controlled device, high precision of temperature control, sample preparation parallelism, as an alternative to the traditional water bath device. It can be widely used in various samples of the cultivation, preservation and reaction. Application of industry includes the pharmaceutical, chemical, food safety, environment, quality inspection.

Product technical parameters:

Model Specifications	DKT200-1	DKT200-2	DKT200-4
Temperature Control Range	R.T.+5°C - 150°C		R.T.+5°C - 120°C
Heating Time	≤ 30min (20°C to 150°C)		≤ 30min (20°C to 120°C)
Temperature Control Accuracy@100~150°C	≤ ±1°C
Temperature Control Accuracy @40~100°C	≤ ±0.5°C
Block Temp Discrepancy@40°C	≤ 0.3°C
Block Temperature Uniformity	≤ ±0.5°C
Display Accuracy	0.1°C
Timing Range	99h59min
Maximum Temperature	150°C		120°C
Maximum Power	200W	400W	600W
Dimension (mm)	230x220x95	260x220x95	360x220x95
Block Selection	Refer to “Exchangeable blocks for DKT series”

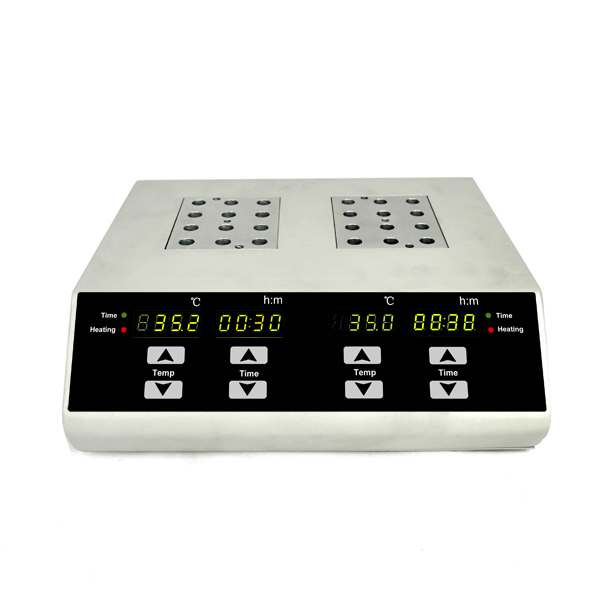

Dry Bath Incubator DKT200-2A

Product description:
DKT200-2A Dry bath incubator is a microprocessor-controlled device, high precision of temperature control, sample preparation parallelism, as an alternative to the traditional water bath device. It can be widely used in various samples of the cultivation, preservation and reaction. Application of industry includes the pharmaceutical, chemical, food safety, environment, quality inspection. DKT200-2 Dry bath incubator Can achieve two independent heating modules, thermostats, unique combo designed to meet the needs of more experimental.

Product features:
1. LCD display ,simple interface.
2. high heating speed, uniform heating, accurate temperature control, high stability, low energy consumption and no noise.
3. Built in temperature calibration function, automatic fault detection and buzzer alarm function.
4. Built in over-temperature protection device, safe and reliable use, prolong the service life of the machine.
5. product design, compact and tight, small occupied space, freer and easier.
6. Various blocks for convenient replacement, cleaning and disinfection.
7.It Can achieve two independent heating modules, thermostats, unique combo designed to meet the needs of more experimental.

Product technical parameters:

Model Specifications	DKT200-1	DKT200-2	DKT200-4
Temperature Control Range	R.T.+5°C - 150°C		R.T.+5°C - 120°C
Heating Time	≤ 30min (20°C to 150°C)		≤ 30min (20°C to 120°C)
Temperature Control Accuracy@100~150°C	≤ ±1°C
Temperature Control Accuracy @40~100°C	≤ ±0.5°C
Block Temp Discrepancy@40°C	≤ 0.3°C
Block Temperature Uniformity	≤ ±0.5°C
Display Accuracy	0.1°C
Timing Range	99h59min
Maximum Temperature	150°C		120°C
Maximum Power	200W	400W	600W
Dimension (mm)	230x220x95	260x220x95	360x220x95
Block Selection	Refer to “Exchangeable blocks for DKT series”

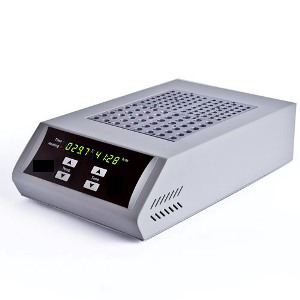

Dry Bath Incubator DKT200-4

Product description:
DKT200-4 Dry bath incubator is a microprocessor-controlled device, high precision of temperature control, sample preparation parallelism, as an alternative to the traditional water bath device. It can be widely used in various samples of the cultivation, preservation and reaction. Application of industry includes the pharmaceutical, chemical, food safety, environment, quality inspection.

Product technical parameters:

Model Specifications	DKT200-1	DKT200-2	DKT200-4
Temperature Control Range	R.T.+5°C - 150°C		R.T.+5°C - 120°C
Heating Time	≤ 30min (20°C to 150°C)		≤ 30min (20°C to 120°C)
Temperature Control Accuracy@100~150°C	≤ ±1°C
Temperature Control Accuracy @40~100°C	≤ ±0.5°C
Block Temp Discrepancy@40°C	≤ 0.3°C
Block Temperature Uniformity	≤ ±0.5°C
Display Accuracy	0.1°C
Timing Range	99h59min
Maximum Temperature	150°C		120°C
Maximum Power	200W	400W	600W
Dimension (mm)	230x220x95	260x220x95	360x220x95
Block Selection	Refer to “Exchangeable blocks for DKT series”

Dry Bath Incubator (cooling) DTC-100

Product description:
DTC-100 DRY BATH INCUBATOR （cooling）is a microprocessor-controlled device, high precision of temperature control, sample preparation parallelism, as an alternative to the traditional water bath device. It can be widely used in samples cultivation, preservation and reaction, DNA amplification, Pre degeneration of electrophoresis and solidification. Application of industry includes the pharmaceutical, chemical, food safety, environment, quality inspection.

Product technical parameters:

Model Specification	DTH-100 Dry Bath Incubator （heating）	DTC-100 Dry Bath Incubator （cooling）
Temperature Control Range	RT+5℃—100℃	-10℃—100℃
Temperature Control Accuracy 100℃	≤±0.5℃
Block Temp Difference 40℃	≤±0.3℃
Block Temperature Uniformity	≤±0.3℃
Display Accuracy	0.1℃
Heating Time	≤15min (from 20℃ to 100℃)
Timing Range	99h59min
Maximum Temperature	100℃
Cooling Time	/	≤30min from RT to RT- 30℃,( detect at 26℃)
Maximum Power	150W
Net Weight	2.2KgS	3.5KgS
Dimension ( LxWxH)	270x196x170 mm
Block Selection	Refer to ” Exchangeable blocks for DTH-100/DTC-100 series”

Dry Bath Incubator (cooling) DTH-100

Product description:
DTH-100 DRY BATH INCUBATOR （heating）is a microprocessor-controlled device, high precision of temperature control, sample preparation parallelism, as an alternative to the traditional water bath device. It can be widely used in samples cultivation, preservation and reaction, DNA amplification, Pre degeneration of electrophoresis and solidification. Application of industry includes the pharmaceutical, chemical, food safety, environment, quality inspection.

Product technical parameters:

Model Specification	DTH-100 Dry Bath Incubator （heating）	DTC-100 Dry Bath Incubator （cooling）
Temperature Control Range	RT+5℃—100℃	-10℃—100℃
Temperature Control Accuracy 100℃	≤±0.5℃
Block Temp Difference 40℃	≤±0.3℃
Block Temperature Uniformity	≤±0.3℃
Display Accuracy	0.1℃
Heating Time	≤15min (from 20℃ to 100℃)
Timing Range	99h59min
Maximum Temperature	100℃
Cooling Time	/	≤30min from RT to RT- 30℃,( detect at 26℃)
Maximum Power	150W
Net Weight	2.2KgS	3.5KgS
Dimension ( LxWxH)	270x196x170 mm
Block Selection	Refer to ” Exchangeable blocks for DTH-100/DTC-100 series”

Exchangeable Blocks For DTH-100/DTC-100 Series

Product technical parameters:

Type	Parameter	Capacity
A	96×0.2ml PCR plate	100℃
B	54×0.5ml	100℃
C	35×1.5ml	100℃
D	35×2.0ml	100℃
E	20×0.5ml+15×1.5ml	100℃
F	24×Dia. ≤ φ12mm	100℃
G	32×0.2ml+25×1.5ml	100℃
H	32×0.2ml+10×0.5ml+15×1.5ml	100℃
I	103×67×30mm (water bath block)	100℃
J	96×0.2ml plate （flat bottom）	100℃
K	24×5ml (High cover)	100℃
L	12×15ml (High cover)	100℃
M	6×50ml (High cover)	100℃
N	Customized Block	100℃

Dry Bath Incubator DKT-100

Product description:
DKT-100 is a new designed dry bath incubator for economic choice. It is well received with lovely appearance, excellent performance and attractive price. DTK-100 dry bath incubator is allocated round heating block. Its good temperature accuracy makes this dry bath incubator extensive used for sample incubation, conservation and reaction in medicine, chemical, food safety, quality testing and environmental industries, etc.

Product features:
1. Fast heating speed. Heating temperature accurate. Temperature controlling precise. Stable without noise.
2. Built-in temperature deviation calibration function, automatic fault detection, and beep alarm function.
3. Built-in over-temperature protection device, safe and reliable.
4. Compact structure designed, small space occupied. Transparent cover.
5. Serious of round heating blocks for choosing. Easy exchange and clean for different types of tubes.

Type	DKT-100
Temperature Control Range	R.T.+5°C ~ 100°C
Heating Time	≤ 10min (from 20°C to 100°C)
Temperature Control Accuracy	≤ ± 0.5°C
Temperature Display Accuracy	0.1°C
Block Temperature Uniformity	≤ ± 0.5°C
Maximum Power	150W
Maximum Temperature	105°C
Time Setting	9999 min
Dimension	176 x 156 x 121 mm
Net Weight	1.5Kg
Block Selection	Refer to “Exchangeable blocks for DKT-100”

Exchangeable Blocks For DKT-100

Product technical parameters:

Type	Description	Dimension	l
A-100	96×0.2ml	Φ104.5mmx 32
B-100	59×0.5ml	Φ104.5mmx 32
C-100	39×1.5ml	Φ104.5mmx 32
D-100	39×2.0ml	Φ104.5mmx 32
E-100	18×5.0ml	Φ104.5mmx 32
F-100	24×0.5ml+30×1.5ml	Φ104.5mmx 32
G-100	59×6mm	Φ104.5mmx 32
H-100	Customized blocks	Customized blocks

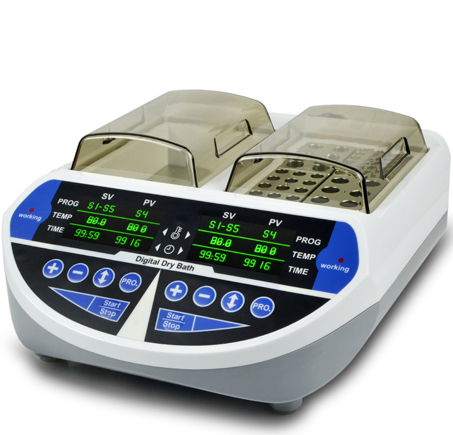

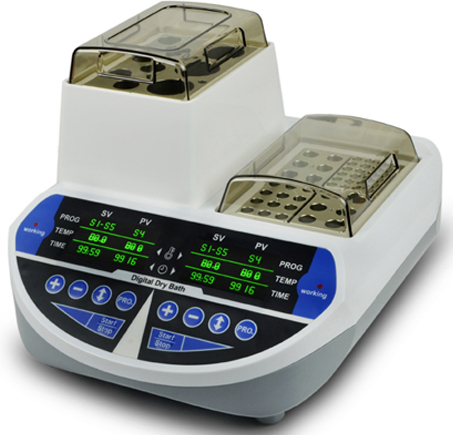

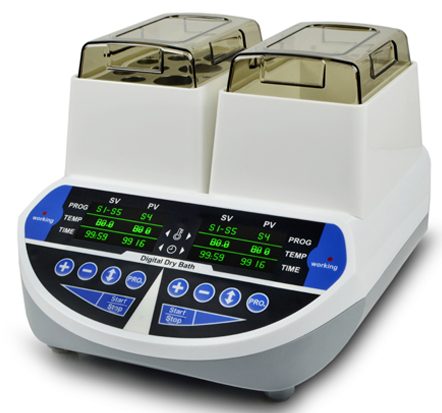

Dual Temperature Control Dry Bath Incubator

Product description:
BTC-100D / BTH-100D / BTH-100 Dual temperature control dry bath incubator has high precision of temperature control and good sample preparation parallelism with microprocessor-controlled thermostat to replace the traditional water bath devices. It can be widely used in the cultivation and preservation of samples ,DNA amplification, the electrophoresis of denaturation and serum coagulation. Application sectors throughout pharmaceutical, chemical, food safety, environment, quality inspection, etc. BTC series are pride of its compact appearance and excellent performance.

Product features:
1. Unique dual temperature control slot can individually control temperature to make sure noninterference One equipment to meet the demand for more experiments.
2. OLED display, simple interface, double time and temperature setting means simultaneous temperature and diminishing time display.
3.Fast heating speed, uniform heating, accurate temperature control, high stability, low energy consumption and no noise.
4. Built in temperature calibration function, automatic fault detection and buzzer alarm function.
5. Built in over-temperature protection device, safe and reliable, enhance the service life of the machine.
6. Product designed compact and tight, occupied little space. Using freer and easier.
7. Various blocks for convenient replacement, easy for cleaning and disinfection.
8. Perfect high module sealing cartridge with cover can make 15 / 50ml high module totally enclosed with dry bath
9. Heated model can option external sensors to control temperature more accurately and directly.

Technical parameters:

Model
Model	BTH-100D（Dual Heating）	BTC-100D（Dual Cooling）	BTH-100（Cooling Heating mixing type）
Temp. Control Range	R.T+5℃~100℃	-10℃~100℃	Heating ：R.T+5℃~100℃ Cooling：-10℃~100℃
Temp. Stability@100℃	≤±0.5℃	≤±0.5℃	≤±0.5℃
Max Temp. Difference@40℃	0.3℃	0.3℃	0.3℃
Block Temp. Uniformity	≤±0.3℃	≤±0.3℃	≤±0.3℃
Display Accuracy	0.1℃	0.1℃	0.1℃
Heating Time	≤15min (20℃~100℃)	≤15min (20℃~100℃)	≤15min (20℃~100℃)
Time Range	1min ~ 99h59min	1min ~ 99h59min	1min ~ 99h59min
Max Temperature	100℃	100℃	100℃
Cooling Time	/	≤25min ( R.T down to 25℃),(Nature down to 26℃)	≤25min (R.Tdown to 25℃),(Nature down to 26℃)
Input Voltage	AC 220/110V 50/60Hz	AC 220/110V 50/60Hz	AC 220/110V 50/60Hz
Power	150W	200W	170W
Fuse Protector	250V,2A/4A, Ф5×20	250V,2A/4A, Ф5×20	250V,2A/4A, Ф5×20
Dimension	W.260xD.240xH.168 mm	W.260xD.240xH.168 mm	W.260xD.240xH.168 mm
Net Weight	2.6kgs	2.6kgs	2.6kgs

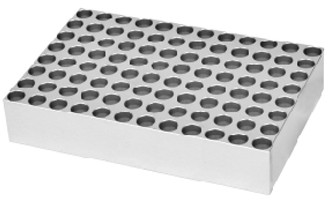

Exchangeable Blocks For BT Series

Product technical parameters:

Type		Tube Diameter	Tube Quantity	Max Capacity
	BT-A	0.2ml Centrifuge tube	24×0.2ml	8 Pieces
	BT-B	0.5ml Centrifuge tube	12×0.5ml	8 Pieces
	BT-C	1.5ml Centrifuge tube	6×1.5ml	8 Pieces
	BT-D	2.0ml Centrifuge tube	6×2.0ml	8 Pieces
	BT-E	0.2ml Centrifuge tube	96X0.2ml	2 pieces Standard PCR plates
	BT-F	15ml Centrifuge tube	6×15ml	4 Pieces
	BT-G	50mlCentrifuge tube	3×50ml	4 Pieces
	BT-H	Customized	Customized	Customized

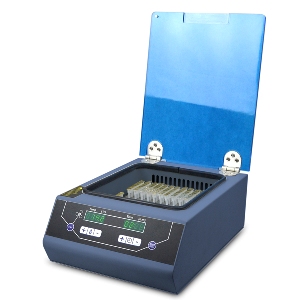

Air Bath ET-60

Product description:
The air bath ET-60 is one multipurpose incubator built in micro-processor with PID controlling. It is suitable for sample incubating in micro-plates, Gel cards, beakers, culture dishes, etc.

Product features:
1. It looks neater and concise. Transparent cover makes experimentation visible.
2. LCD display temperature and time.
3. Various sample containers such as micro-plate, reagent cards frame, beaker, culture dish, etc. can be put into the incubation space.
4. Micro-processor controls temperature and time. Safe and reliable. Beep alarm when time ended.
5. Incubate simultaneously for various containers to improve experiment efficiency.

parameters:

Type	ET-60
Temperature Range	R.T+5 ~60°C
Timing Range	1min ~99h59min
Temperature Uniformity	±0.5°C
Temperature Stability	±0.2°C
Temperature Accuracy	0.5°C
Power Supply	220V 2A 200W / 110V 4A 300W
Incubation Space Size	245x 215 x 85 mm
Dimension	395 x 275 x 130 mm

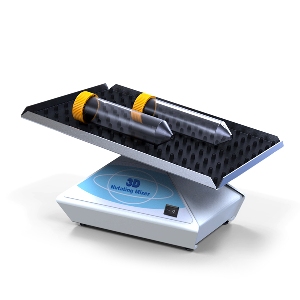

3D Gyratory Rocker RH-24

Product description:
The type RH-24 is an economical 3D gyratory rocker with perfect 3-dimensional motion for gentle but thorough mixing. It is an ideal choice for small sample mixing. It suits for blood collection tube and centrifuge tube, applies for all blot related applications such as gel staining and destaining The concave pad can firmly keep the tubes. and is safe for use in cold rooms and incubators Tube Capacity: 60x1.5ml, 30x3ml, 21x7ml, 17x15m.

Product features:
1. Gentle but thorough mixing
2. Suits for blood collection tubes and centrifuge tubes
3. Tilt angle and speed have been optimally set
4. Safe for use in cold rooms and incubators

parameters:

Type	3D Gyratory Rocker RH-24
Speed	20rpm (fixed)
Tilt Angle	3-D / 20° (fixed)
Max. Load	0.8kg
Dimension	240×170×150mm
Net Weight	0.88 kg
Power	110V/220V

Rocking Shaker HS-25

Product description:
The rocking shaker HS-25 is a table type shaker suitable in both room temperature and incubator. It is widely used in immobilization of running gel, shaking for dyeing or fading the Coomassie blue, immobilization, dyeing and developing of silver-staining, developing and fixation of the X-ray film in autoradiography experiment, and further processing of cellulose membrane after gel shift such as molecular hybridization, staining with antigen-antibody. It is also used for cell culture and cell membrane transfer.HS-25/ QS-80 is suitable for various laboratory sample bottles such as culture dish, triangular flask and culture bottle.

features:
1. Platform made of stainless steel and natural rubber, which is alkali-resistant, non-deformation, easy-clean and spill-prevention.
2. Speed real-time display and diminishing time display.
3. The bearing is articulated rotating, secure and no wear, suitable for prolonged use.
4. Compact designed, take up very little space.
5. Brushless DC motor, maintenance-free.

parameters:

Speed Range: 10 ~80rpm

Timing Range: 1min ~99h59min

Swing Angle: 10°

Swing Cycloid: 25mm (up and down)

Platform Dimension: 280 x 228mm

External Dimension: 284 x 264 x 100mm

Voltage: AC90-230V

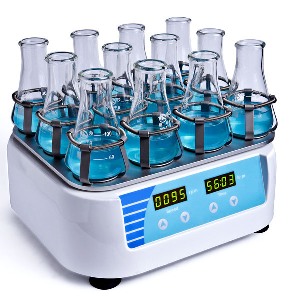

Orbital Shaker GS-10

Product description:
GS-10 orbital shaker is compact and amazingly designed. It is used for any mixing applications in different industries. Built with DC brushless motor, adopted micro-computer control technology, the orbital shaker is easy to operate. Gentle shaking, it is applied in different laboratories of molecular biology, microbiology, immunology, chemistry, etc. It is low-energy, safe, stable and no noise.

Product features:
1. Speed adjustable. Gentle shaking, applied in different industries.
2. LED display time and speed.
3. Compact and clean designed, streamlined fuselage, simple operation, convenient for cleaning.
4. Timing function. Beep alarm when operation ends.
5. DC brushless motor, safe, long life and free of maintenance. Operating silent and stable.
6. Different platforms to adapt different conical flasks and other sample containers for optional choices.

Technical Parameters：

Model	GS-10 Orbital Shaker	GS-20 Orbital Shaker	GS-30 Orbital Shaker
Speed Range	50-350 rpm	50-300 rpm	50-250 rpm
Orbit	10mm	20mm	30mm
Timing Range	1min ~99h59min
Max. Loading Capacity	2.0kgs
Operating Condition Temp	4 ~45°C
Dimensions	284 x 264 x 108 mm
Voltage	AC 100 ~230V

GeneralOptional accessories：

P6-250 Platform	UP-12 Universal platform	PP12-100 Platform	PP-4 Flat platform	PP-4A Double Flat platform	PW-260 Universal platform

Orbital Shaker GS-20

Product description:
GS-20 orbital shaker is compact and amazingly designed. It is used for any mixing applications in different industries. Built with DC brushless motor, adopted micro-computer control technology, the orbital shaker is easy to operate. Gentle shaking, it is applied in different laboratories of molecular biology, microbiology, immunology, chemistry, etc. It is low-energy, safe, stable and no noise.

Technical Parameters：

Model	GS-10 Orbital Shaker	GS-20 Orbital Shaker	GS-30 Orbital Shaker
Speed Range	50-350 rpm	50-300 rpm	50-250 rpm
Orbit	10mm	20mm	30mm
Timing Range	1min ~99h59min
Max. Loading Capacity	2.0kgs
Operating Condition Temp	4 ~45°C
Dimensions	284 x 264 x 108 mm
Voltage	AC 100 ~230V

Orbital Shaker GS-30

Product description:
GS-30 orbital shaker is compact and amazingly designed. It is used for any mixing applications in different industries. Built with DC brushless motor, adopted micro-computer control technology, the orbital shaker is easy to operate. Gentle shaking, it is applied in different laboratories of molecular biology, microbiology, immunology, chemistry, etc. It is low-energy, safe, stable and no noise.

Technical Parameters：

Model	GS-10 Orbital Shaker	GS-20 Orbital Shaker	GS-30 Orbital Shaker
Speed Range	50-350 rpm	50-300 rpm	50-250 rpm
Orbit	10mm	20mm	30mm
Timing Range	1min ~99h59min
Max. Loading Capacity	2.0kgs
Operating Condition Temp	4 ~45°C
Dimensions	284 x 264 x 108 mm
Voltage	AC 100 ~230V

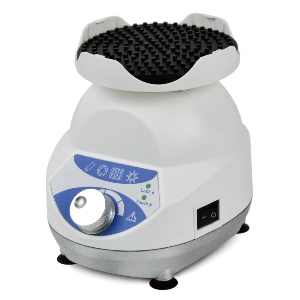

Mini Mix Instrument MIX-25

Product features:
1.Mini and compact appearance, powerful function, sucker type under-chassis, super shockproof, ideal for high speed operation.
2.Multiple mixing modes, touch-operation, continuous operation and timing set.
3.Wide speed range:0-3000rpm/min, continuously variable motor and Brushless DC Motor are optional. Stable low speed, powerful high speed.
4.Shaking block convenient for replacement, stable and reliable, sturdy and durable eccentric bearing design.
5.Various shaking block adapters optional. (Suitable for Eppendorf Tube）。

Technical Parameters：

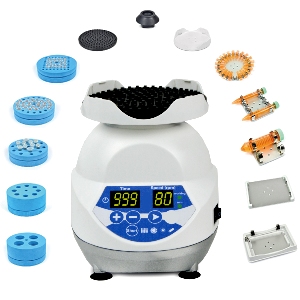

Model	MIX-25 Rotation Type	MIX-25P Rotation Type	MIX-30S Digital display
Operation display pattern	Knob + Scale	Knob + Scale	Knob + Scale
Orbit	4mm	3mm	2mm
Shaking mode	circle	circle	circle
Operation mode	Continuous running/ Short Mix	Continuous running/ Short Mix	Continuous running/ Short Mix
Speed Range	0 ~ 2500rpm	0 ~ 2500rpm	300 ~ 3000rpm
Timing Range	/	/	1s ~ 999min
Voltage	AC220V/AC110V，50/60Hz	AC220V/AC110V，50/60Hz	DC24V
Power	60W	60W	30W
Optional Accessories	standard head and flat pad	All	All
Fuse	250V,1A, Φ5x20	250V,1A, Φ5x20	/
Dimension	W.132×D.156×H.150mm	W.132×D.156×H.150mm	W.132×D.156×H.150mm
Net Weight	2.4kgs	2.4kgs	2.2kgs

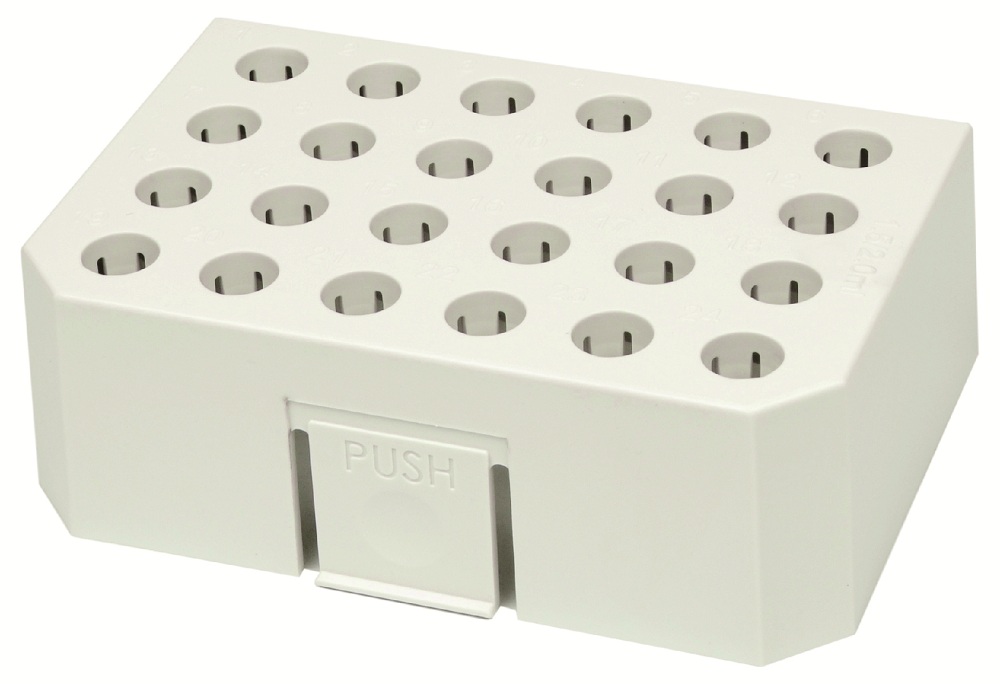

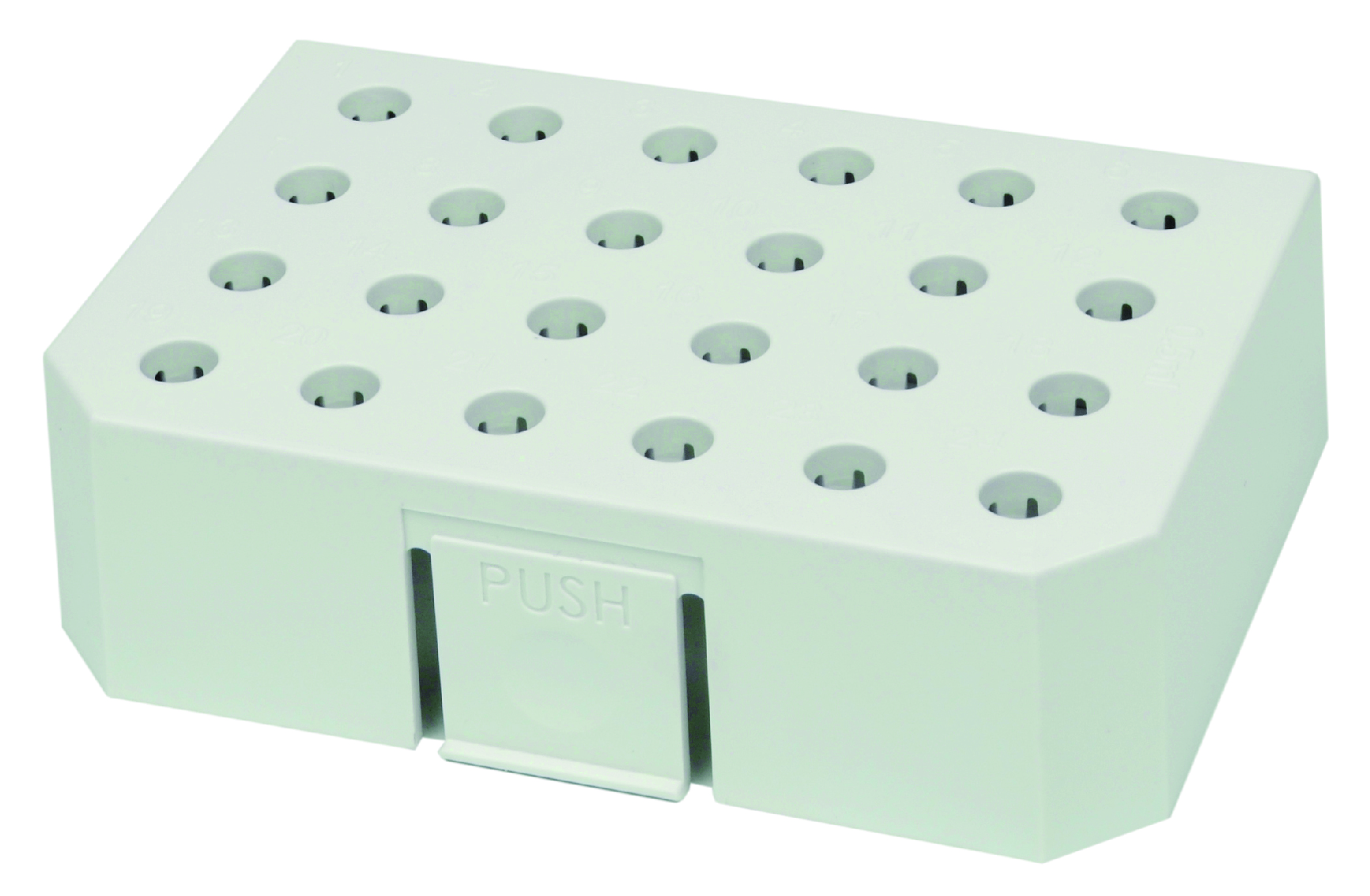

Exchangeable blocks for Mix series

Cat#		Description
	MX-A	Standard head. Suit for tubes and containers with dia.<30mm
	MX-B	Convex pad. Use with MX-P Suit for tubes and containers with dia.<99mm

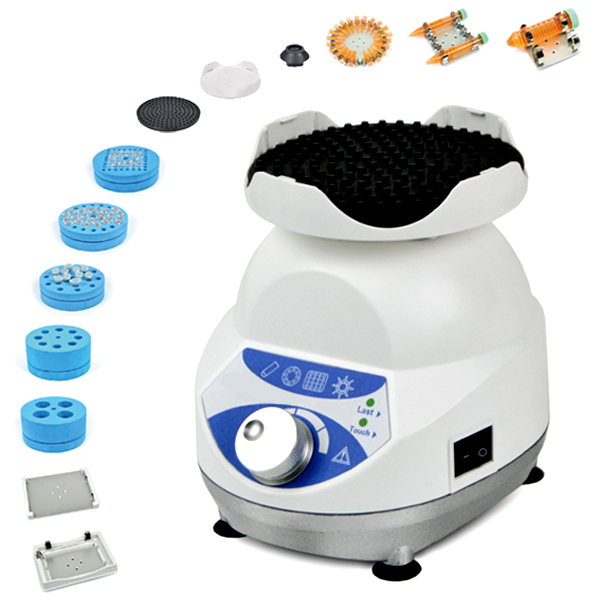

Mini Mix Instrument MIX-25P

Product description:
MIX-30S/MIX-25P/MIX-25 MINI Mixer is used for vibration, blend and stir of sample tissue, cell, bacteria Liquid and chemical reagent in life science and physical and chemical analysis field. Multiple tubes are suitable for 0.2~50ml micro tubes and tubes or small container whose diameter is less than 108mm.

Technical Parameters：

Model	MIX-25 Rotation Type	MIX-25P Rotation Type	MIX-30S Digital display
Operation display pattern	Knob + Scale	Knob + Scale	Knob + Scale
Orbit	4mm	3mm	2mm
Shaking mode	circle	circle	circle
Operation mode	Continuous running/ Short Mix	Continuous running/ Short Mix	Continuous running/ Short Mix
Speed Range	0 ~ 2500rpm	0 ~ 2500rpm	300 ~ 3000rpm
Timing Range	/	/	1s ~ 999min
Voltage	AC220V/AC110V，50/60Hz	AC220V/AC110V，50/60Hz	DC24V
Power	60W	60W	30W
Optional Accessories	standard head and flat pad	All	All
Fuse	250V,1A, Φ5x20	250V,1A, Φ5x20	/
Dimension	W.132×D.156×H.150mm	W.132×D.156×H.150mm	W.132×D.156×H.150mm
Net Weight	2.4kgs	2.4kgs	2.2kgs

Mini Mix Instrument MIX-30S

Technical Parameters：

Model	MIX-25 Rotation Type	MIX-25P Rotation Type	MIX-30S Digital display
Operation display pattern	Knob + Scale	Knob + Scale	Knob + Scale
Orbit	4mm	3mm	2mm
Shaking mode	circle	circle	circle
Operation mode	Continuous running/ Short Mix	Continuous running/ Short Mix	Continuous running/ Short Mix
Speed Range	0 ~ 2500rpm	0 ~ 2500rpm	300 ~ 3000rpm
Timing Range	/	/	1s ~ 999min
Voltage	AC220V/AC110V，50/60Hz	AC220V/AC110V，50/60Hz	DC24V
Power	60W	60W	30W
Optional Accessories	standard head and flat pad	All	All
Fuse	250V,1A, Φ5x20	250V,1A, Φ5x20	/
Dimension	W.132×D.156×H.150mm	W.132×D.156×H.150mm	W.132×D.156×H.150mm
Net Weight	2.4kgs	2.4kgs	2.2kgs

Exchangeable blocks for Mix series

Cat#		Description
	MX-A	Standard head. Suit for tubes and containers with dia.<30mm
	MX-B	Convex pad. Use with MX-P. Suit for tubes and containers with dia.<99mm
	MX-C	Foam tube holder. For 0.2ml tubes, 70 holes. Use with MX-P
	MX-D	Foam tube holder. For 0.5ml tubes, 36 holes. Use with MX-P
	MX-E	Foam tube holder. For 1.5/2.0ml tubes, 20 holes. Use with MX-P
	MX-F	Foam tube holder. For 15ml tubes, 8 holes. Use with MX-P
	MX-G	Foam tube holder. For 50ml tubes, 4 holes. Use with MX-P
	MX-H	Tube holder platform. For 1.5ml/2.0ml tubes x 22
	MX-I	Tube holder platform. For 15ml tubes x 4
	MX-J	Tube holder platform. For 50ml tubes x 2
	MX-K	Plate holder platform. For all standard plates
	MX-L	Universal platform for tube stands MIX-A/B/C and all standard plates
	MX-M	Customized

MX-L test tube scaffold：

MIX-A	MIX-B	MIX-C

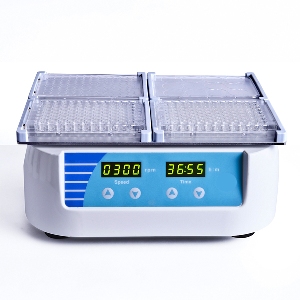

Micro-Plate Shaker MIX-1500

Product description:
Micro plate shaker MIX-1500 is mainly applied in solution mixing and shaking with PCR plate (96-holes/384-holes), cell culture plate (24-holes/48-holes/96-holes etc.) for immunoassay and dyeing experiments. It is safe used in low temperature environment or low temperature incubator. MIX-1500 is designed compact with simple and convenient operation. It uses DC brushless motor, safe, stable and no noise.

Product features:
1. LED digital display. Simple and easy operation designed panel. Display time and speed accurately.
2. Microprocessor controls speed and time, safe, stable, no noise.
3. Accommodate 4 standard PCR plates or micro plates, mixing trace amount of sample efficiently.
4. DC brushless motor, long life and free of maintenance. Provide both gentle and powerful shaking.
5. Provide timing function. Alarm notification when program completes.

Technical Parameters：

Model	MIX-1500 Micro Plate Shaker
Speed Range	200-1500rpm
Shaking Speed Range	200-1500 rpm/min – Standard
Shaking Speed Range	200-1000 rpm/min – Deep well with full load
Timer	99h59min
Orbit	3mm（horizontal）
Dimensions	284x264x121mm
Weight	5.2KG

Three-Dimensional Rotating Mixer RH-18

Product description:
The new series of three-dimensional rotating mixer is a uniquely designed instrument which can mix samples by horizon, vertical or any angled rotation with a variety of sample tubes. Adjusting the rotating frame (tube holder) can make the products either horizontally or vertically or between the angles of horizon and verticality to rotate. It is widely used in molecular hybridization, blood and various samples requiring mixing. Its rotation speed is moderate. In addition, the two rotating frame (tube holder) on each side of the rotating roller can be adjusted individually to meet different hybrid modes in one mixture. The 3D rotating mixer is compact, light and convenient. It is easily moved to different places, such as to a test-bed, a refrigerator or an incubator. The shell and rotating panel of this instrument adopt a special design. It’s very easy to clean and decontaminate

Product features:
1. Unique combination of adjustable rotating frame.
2. A variety of rotation modes, from mild type to somersault type rotation mode.
3. RH-18+: with reciprocating oscillation function from 20angel to 99angle.
4. RH-18: positive and negative rotation just gently press the rotating frame when instrument is working.
5. Widely used in molecular biology, histo-chemistry, bio-chemistry, clinical applications, etc.
6. Provide three types of rotating frame.

Parameters：

Model	RH-18 Three-Dimensional Rotating Mixer	RH-18+ Three-Dimensional Rotating Mixer
Rotating speed	18r/min	10-40r/min
Time range	/	1s-999min
Reciprocating Oscillation Range	/	20 angle ~99 angle
Power	4w
Weight	1kg	1.2kg
Power supply	220V/110V	AC100-230V
Dimension	240x145x210mm

Standard configuration：

A	2 pieces	5 centrifuge tubes of 10ml /15 ml(Ф15mm-Ф16mm) +6 centrifuge tubes of 5ml /7 ml(Ф12mm-Ф13mm)
B	2 pieces	3 centrifuge tubes of 50ml +18 centrifuge tubes of 0.5ml
C	2 pieces	18 centrifuge tubes of 1.5ml / 2.0ml

Three-Dimensional Rotating Mixer RH-18+

Parameters：

Model	RH-18 Three-Dimensional Rotating Mixer	RH-18+ Three-Dimensional Rotating Mixer
Rotating speed	18r/min	10-40r/min
Time range	/	1s-999min
Reciprocating Oscillation Range	/	20 angle ~99 angle
Power	4w
Weight	1kg	1.2kg
Power supply	220V/110V	AC100-230V
Dimension	240x145x210mm

Standard configuration：

A	2 pieces	5 centrifuge tubes of 10ml /15 ml(Ф15mm-Ф16mm) +6 centrifuge tubes of 5ml /7 ml(Ф12mm-Ф13mm)
B	2 pieces	3 centrifuge tubes of 50ml +18 centrifuge tubes of 0.5ml
C	2 pieces	18 centrifuge tubes of 1.5ml / 2.0ml

Vertical Rotating Mixer VM-80

Product description:
The vertical rotating mixer VM-80 provides efficient but soft mixing to keep the sample in a suspension status such as blood mixing. It is suitable for preventing blood clots, latex diagnosis, Immunoprecipitation and similar applications.

Product features:
1. Smart appearance, solid structure, simple operation. LED display time and speed.
2. DC brushless motor, stable performance, low noise and long using life.
3. 360° vertical circulation rotation, operating smooth and steady.
4. Different tube holder frames for optional to suit different types of tubes.

Parameters：

Type	VM-80
Voltage	100-240VAC 50/60Hz
Motor Input Power	16W
Motor Output Power	10W
Speed Range	0-80rpm
Motor Pattern	Circling Motion
Dimension (LxWxH)	470 x 190 x 160mm
Net Weight	2.8kgs

Optionaltube holder frames：

Type	Description
MV80-A	1.5ml x 64
MV80-B	1.5ml x 22
MV80-C	1.5ml x 16

Rotary Mixing Solution YC-80

Product description:
The rotary mixing solution YC-80 is mainly used for tissue culture, sample extraction, sedimentation rate determination. E.g. blood sample mixing, wet-chemical analysis of radio-immunity, glucose, protein, DNA, cellula, urine, enzyme, etc. It also widespread applied in biochemistry, organism, cellula, immune, chemistry, flora and fauna analysis, clinical experiments, etc. It is capable of long-time continuously uniform working, and is very convenient to operate. Gradient of the turntable is changed freely. It can also working in the thermostat incubator.

Product features:
1. Humanized designed operation keyboard. LED display time and speed.
2. Several optional turntable supplied, suit for the tubes from 1.5ml to 50ml.
3. The turntable’s gradient can be adjusted from 0 to 90 degree.
4. Timing function. Time range from 0 to 9999min, LED display remaining time. Beep alarm when program time ends.
5. DC brushless motor, speed control accuracy, long life and maintenance-free.

Parameters：

Type	YC-80
Gradient Range	0°—90°
Gradient Range	10 —80rpm
Timing	9999min
Temperature Restriction	＜65℃（Dry Air）
Net Weight	4.5Kg
Dimension	220 x 236 x 246mm（W x D x H）
Input Voltage	AC85~265V

Optionaltube holder frames：

Type	Description
YC-A	50ml V-Bottom tube x 10
YC-B	15ml V-Bottom tube x 18
YC-C	1.5ml tube x 64

Roller mix instrument LSM-80

Product description:
The tube roller LSM-80/LSM-80D is widely used in mixing blood sample, sticky substance and Solid-liquid suspension, etc. It provides two operation modes – rolling and swinging to improve mixing efficiency and safety. It is applied in preventing blood clotting, immunoprecipitation, and other similar using. incubator.

Product features:
1. Compact and firm designed, simple operation, LED display time and speed.
2. Two types choosable –rolling type and rolling & swinging type. Continuous working mode, safe and stable.
3. With stable performance motor, operation speed adjustable, max. speed to 80rpm. Low noise, long using life.
4. Can compatible with different size of tubes. Large range of application.

Parameters：

Type	LSM-80	LSM-80D
Operation Mode	rolling & swinging	rolling
AMPLITUDE	24mm	/
Max. Capacity	4kgs
Roller Quantity	6
Motor	brushless DC motor
Speed Unit	1rpm
Roller Length	280mm
Speed Range	10-80rpm
Dimension (DxWxH)	450 x 260 x 120mm
Net Weight	4.5kg
Voltage	AC100-240 50-60HZ
Power	25W

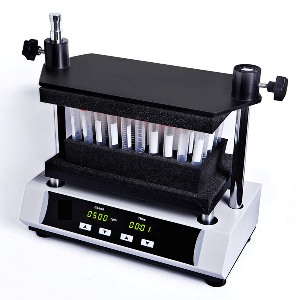

Multi-Tube Vortexes DMT-2500

Product description:
DMT-2500 Multi-Tube Vortex Mixer can process 50 samples at once.. a variety of accessories can be selected for your choice to meet the mixing needs of different specifications of test tube .Humanized program design, built-in two operation modes : short mix and fixed timing ,which make the experiment more convenient and efficient.

Product features:
1. Maximum process 50 samples at the same time to make the experiment more convenient and efficient
2. Microprocessor control, simplistic designed appearance, LED display the speed and time.
3. Humanized program design, built-in short mix and timing operation modes. Operation stable and silent.
4. Large orbital vortex, performance effective. Various types of foam tube frames and pads for option.

Technical parameter：

Model	DMT-2500 Multi-Tube Vortex Mixer
Speed range	500-2500rpm
Speed accuracy	±50rpm (@2500rpm detection)
Timing range	1s-9999min
Working diameter	4mm
Maximum load	5kg
top panel size	311x184 mm
Dimensions	426x250x480mm
Weight	21.5kg
Power	100-230V 50/60Hz 60W

Optional accessories：

Type	Detail	Holes	Dimension (mm)
DMT-A	50 x Φ10mm tube frame	50	245×132×45 mm
DMT-B	50 x Φ12mm tube frame	50	245×132×45 mm
DMT-C	50 x Φ13mm tube frame	50	245×132×45 mm
DMT-D	50 x Φ16mm tube frame(15ml tube)	50	245×132×45 mm
DMT-E	15 x Φ25mm tube frame	15	245×132×45 mm
DMT-F	15 x Φ29mm tube frame(50ml tube)	15	245×132×45 mm
DMT-H	Tray Pad Set (Upper & Lower)	/	305×178.5×25 mm

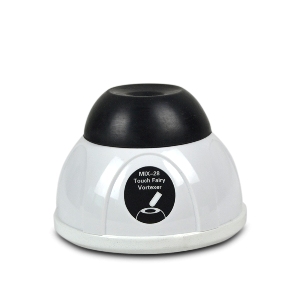

Dancing Fairy -vortexes Smart MIX-28

Product description:
The Dancing Fairy –vortexes Smart focus on touch-to-mix (short mix) for a variety of tubes / centrifugal tubes. Its compact design makes it very attractive and welcome, while its touch-to-mix operation makes it very easy handling and quite convenient. Dancing Fairy –vortexes Smart becomes an essential experimental instrument with its prominent mixing effect.

Product features:
1. The maximum diameter of the mixed tube is up to 30mm. Suit for mixing tubes / centrifugal tubes with prominent mixing effect.
2. Outer shell and touch concave are made of plastic which is resistance to chemical attack. The thick base makes operation very steady and reliable.
3. 12V low voltage power adapter built in, very smart and portable.

Parameters：

Type	MIX-28 Dancing Fairy -vortexes Smart	MIX-28+ Dancing Fairy -vortexes Smart
Mixing Method	Circle Shaking (Vortexing)
Shaking Orbit	4.5 mm
Loading Capacity (1 tube)	max. to 50 ml
Motor Input / Output Power	1.2 W / 0.8 W
Shaking Speed	2,800 rpm	0-2,800 rpm
Dimension	110 x 70 mm
Net Weight	1.2 kg
Power	AC 90 ~ 230V / 15W

Dancing Fairy -vortexes Smart MIX-28+

Parameters：

Type	MIX-28 Dancing Fairy -vortexes Smart	MIX-28+ Dancing Fairy -vortexes Smart
Mixing Method	Circle Shaking (Vortexing)
Shaking Orbit	4.5 mm
Loading Capacity (1 tube)	max. to 50 ml
Motor Input / Output Power	1.2 W / 0.8 W
Shaking Speed	2,800 rpm	0-2,800 rpm
Dimension	110 x 70 mm
Net Weight	1.2 kg
Power	AC 90 ~ 230V / 15W

Smart Mixer MIX-3000

Product description:
MIX-3000 smart is a compact mixer with a high efficiency, multiple functions. It integrates design principle of mixing and shaking with intelligent operation and can be applied to a variety of mixing and vortex shaking operation. It not only can mix various micro volume tube, PCR plate, deep hole plate and micro plate and other common laboratory supplies ,but also equips the function of votexing all kinds of tubes. Unique design principle, which combines mixing and shaking with intelligent operation make the operation simpler, safe, and convenient.

Product features:
The excellent radius and dimensional technology blend in with adjustable mixing speed ensure fast and perfect experiment.

Product technical parameters：

Model	MIX-3000 Smart Mixer
Shaking Speed Range	300-3000 rpm (10rpm step)
Vortex Shaking Speed	3500 rpm
mixing Time	1s—99h59min(continuously)
Orbit	3mm
Noise	<52 db
Weight	4.5kg
Dimensions	270196170mm
Power Supply	AC100～230V，50-60Hz, 45W

Three tube-stands Configurated：

1MIX-A	96x0.2ml tube stand. Applied to 0.2ml PCR tubes, PCR strips and 96-well PCR plates (semi-skirted and un-skirted)
2MIX-B	24x0.5ml Tube stand
3MIX-C	24x1.5/2.0ml Tube stand
Remarks	96-well skirted PCR plates, 384-well PCR plates, deep-well plates can be directly put into the mixer without stand support.

Product application:
Controllable and fast mixing makes good experimental conditions uniformity between the hole and hole / tube and tube. The reproducibility is improved.

1	preparation of PCR reaction system
2	Precipitation suspension( such as bacteria, DNA, cell culture precipitation )
3	Incubation ( ELISA enzyme immunoassay analyzer)
4	protein staining quantitative ( such as Bradford, Lowry, BCA )
5	report gene assays ( such asβ- galactosidase, luciferase analysis )
6	premixed reaction system
7	mixing various kind of tubes

3-in-1 format
Plates	Tubes	Vortexing numerous tube formats
PCR plates (skirted, semi-skirted, unskirted)	0.2 ml PCR tubes and PCR strips
384 hole PCR plate	0.5 ml Micro-test tube
96- and 384- deepwell plates	1.5 ml Micro-test tube
MTP enzyme labeled plate	2.0 ml Micro-test tube

Sample Concentrator NDK200-1

Product description:
NDK200-1 nitrogen concentrator is mainly used for enrichment of large-volume sample or preparation (such as drug screening, hormone analysis, liquid phase, and mass spectrometry in the analysis of sample preparation). Working principle: the nitrogen into the heated surface of the sample and make the solvent t evaporate and separated rapidly, thereby reaching the sample enrichment purpose without oxygen, keep the sample purer. Nitrogen concentrator instrument can concentrated dozens of samples simultaneously, saving time and high efficient, instead of rotary evaporation instrument.

Product features:
1. Synchronously working with heating by dry bath in the bottom and nitrogen blowing on the surface accelerates liquid evaporation and sample concentration.
2. The position of gas needle in air cavity can be adjusted to suit for different types of tubes.
3. The height of the air cavity can be adjusted. The length of a standard gas needle is 150mm.
4. Gas needle is controlled independently. Separately blow of each needle and flow regulating of each needle are available to avoid gas waste.
5. The entire equipment can be put into ventilation cabinet when the concentration sample in toxic solvents.
6. Built in overheat protection, automatic fault detection and fault beep alarm devices.
7. LED display immediate temperature and diminishing time. Operation is simple and convenient.
8. Standard configured air cavity and adjustable bracket.

Technical Parameters：

Model	NDK200-1 Nitrogen Concentrator	NDK200-2 Nitrogen Concentrator
Temperature range	RT+5℃ to 150℃
Heating time	≤30min （from 40℃ to 150℃)
Temperature accuracy（40~100℃）	±0.5℃
Temperature accuracy（100~150℃）	±1℃
Temperature uniformity（100℃）	±0.5℃
Blocks Quantity	1 pieces	2 pieces
Time range	99h59min
Nitrogen flow	0—10L/min
Nitrogen pressure	≤0.1MPa
power	200W	400W
Dimensions	230x200x500 mm	260x220x500 mm
Blocks Selection	Refer to the Exchangeable blocks for NDK Series”

Exchangeable blocks forNDK Series：

Type	Description	Block Dimension (mm)
DT01A	Φ6mmx 12	95.5 x 76.5 x 50
DT02A	Φ7mmx 12	95.5 x 76.5 x 50
DT03A	Φ10mmx 12	95.5 x 76.5 x 50
DT04A	Φ12mmx 12	95.5 x 76.5 x 50
DT05A	Φ13mmx 12	95.5 x 76.5 x 50
DT06A	Φ15mmx 12	95.5 x 76.5 x 50
DT07A	Φ16mmx 12	95.5 x 76.5 x 50
DT08A	Φ19mmx 12	95.5 x 76.5 x 50
DT09A	Φ20mmx 12	95.5 x 76.5 x 50
DT10A	Φ26mmx 12	95.5 x 76.5 x 50
DT11A	Φ28mmx 12	95.5 x 76.5 x 50
DT12A	Φ40mmx 12	95.5 x 76.5 x 50
DT13A	0.5ml centrifugal tube x 12	95.5 x 76.5 x 50
DT14A	1.5ml centrifugal tube x 12	95.5 x 76.5 x 50
DT15A	2.0ml centrifugal tube x 12	95.5 x 76.5 x 50
DT16A	0.2ml tube x 12	95.5 x 76.5 x 50
DT17A	Flat (96-hole Enzyme Plate)	78 x 114 x 26
DT18A	customized	customized

Conventional configuration:
Optional blocks from DT01A to DT18. Block can be interchanged easily Optional flow regulating valve.

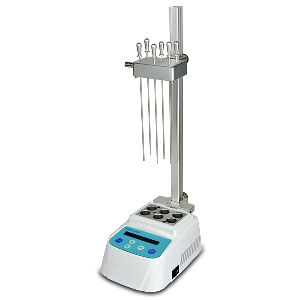

Sample Concentrator MINI-100N

Product description:
The nitrogen sample concentrator MINI-100N is mainly used for concentrating or preparing sample in batch. Such as drug screening, hormone analysis, liquid phase and mass spectrometry in the analysis of sample preparation. It works by blowing nitrogen in the surface of sample which is being heated to accelerate evaporating and separating the solvent in the samples without oxygen. Instead of the rotary evaporation instrument, nitrogen sample concentrator can efficiently concentrate dozens of samples simultaneously.

Product features:
1. Synchronously working with heating by dry bath in the bottom and nitrogen blowing on the surface accelerates liquid evaporation and sample concentration.
2. The position of gas needle in air chamber plate can be adjusted to suit for different types of tubes.
3. The height of the air chamber plate can be adjusted. The length of a standard gas needle is 150mm.
4. Separately blow of 6 needles and flow regulating of each needle are available to avoid gas waste.
5. The entire equipment can be put into ventilation cabinet when the concentration sample in toxic solvents.
6. Built in overheat protection, automatic fault detection and fault beep alarm devices.
7. LED display immediate temperature and diminishing time. Operation is simple and convenient.
8. Standard configured air cavity and adjustable bracket.

Technical Parameter ：

Model	MINI-100N
Temp. Range	R.T.+5℃—100℃
Heating Time	≤12min （From40℃ to 100℃)
Temp. Accuracy （40~100℃）	±0.5℃
emp. Accuracy（100~150℃）	±1℃
Temp.Stability（100℃）	±0.5℃
Blocks Quantity	1 Block
Time Range	1s ~ 999s or 1min ~ 999min
Nitrogen Flow Rate	0—10L/min
Nitrogen Pressure	≤0.1MPa
Power	60W
Dimensions (W×D×H)	W.110 x D.156 x H.400 mm
Blocks Selection	Refer to “Exchangeable blocks”

Blocks Replacement for MINI-100N

Blocks can be optional and exchanged. Optional flow regulating valve. ：

Cat#	MiniP-C	MiniP-D	MiniP-F
Tube Quantity & Dia of hole	6 x φ15mm	6 x φ16mm	Customized

Vacuum Pump ZK-26

Product description:
The vacuum pump ZK-26 is an important corollary equipment to raise filtering efficiency and enhancing degassing effects. To avoid filtering medium polluted, oil free diaphragm type vacuum pump is a common choice. Oil free diaphragm type vacuum pump forms a vacuum by back and forth movement of rubber diaphragm. Its vacuum pressure is around 0.08Mpa (single-stage). ZK-26 is specially designed to assort various demands of the laboratory vacuum equipments. It can be used for vacuum concentration, vacuum filtration, vacuum drying, etc.

Product features:
1. Provide enough motor power to reduce fevers.
2. The vacuum membrane is made of high quality oil resistivity and fatigue resistance rubber with 3mm interlayer to strengthen the textile skeleton. Long service life.
3. Compact and practical, simple operation, high efficiency and low noise.
4. Optional regulating type and vent valve configuration.

Parameter ：

Type	ZK-26/25	ZK-26/100
Rate of Flow	26L/min
Vacuum Degree	0.08Mpa
Negative Pressure Adjust Range	0-0.08Mpa
Filtration Bottle Capacity	250ml	1000ml
Voltage	AC 220V/110V50HZ/60HZ
Power	60W

Notice:

1. Filtration efficiency mainly depends on the flow exhausted per unit time (namely the flow index of the vacuum pump), especially in case of large filtration capacity or high medium viscosity.
2. Besides proper use method (such as reducing inaction continuous boot, avoid solution into the pump body…), the vacuum pump working life also depends on reasonable motor power, design patterns of vacuum membrane, and its fatigue resistance.

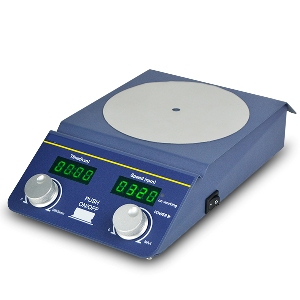

Digital Magnetic Stirrer SP-25

Product description:
Magnetic stirring provided with a stir bar. Humanized design for convenient operation to meet various heating and stirring experimental needs.

Product features:
1. Available for heating and stirring standard/non-standard reaction flasks between 50ml and 100L.
2. DC brushless motor make stable operation, low noise, long using life and no spark.
3. Metal plate shell, firm and durable, thermostability and anti-corrosion.
4. The control panel designed 30° slopes for convenient operation.
5. Magnetic stirring technology. Steady working at low speed, powerful working at high speed.

Parameter ：

Model	TP-350	TP-350S	SP-18	SP-25
Platform Size	Φ137mm	Φ137mm	Φ137mm	154x163mm
Platform Material	enamel	enamel	stainless steel	silicone pad
Speed Range	/	100 ~1800rpm	100 ~1800rpm	300 ~1200rpm
Temp. Control Range (surface)	R.T.+5°C ~340°C	R.T.+5°C ~340°C	/	/
Temp. Setting Range (surface)	30°C ~340°C	30°C ~340°C	/	/
Temp. Stability	±3℃	±3℃	/	/
Time Range	1min ~99h59min	continuous	1min ~99h59min	continuous
Stirring Point Quantity	/	1 point	1 point	1 point
Max. Stir Capacity (H2O)	/	20L	20L	100L
Max. Size of Stirrer Stick	/	80mm	80mm	80mm
External Interface Temp. Sensor	PT1000	PT1000	/	/
Adjustable Safety Loop Min Temp.	50°C	50°C	/	/
Adjustable Safety Loop Max Temp.	350°C	350°C	/	/
Voltage	AC 220V/ AC 110V 50/60Hz	AC 220V/ AC 110V 50/60Hz	AC100 ~230V 50/60Hz	AC100 ~230V 50/60Hz
Power	600W	600W	30W	30W
Fuse	250V, 4A/8A, Ф5x20	250V, 4A/8A, Ф5x20	250V, 4A/8A, Ф5x20	250V, 4A/8A, Ф5x20
Dimension (WxDxH)	156 x 270 x 70mm	156 x 270 x 70mm	156 x 270 x 70mm	156 x 270 x 70mm
Net Weight	2.2kgs	2.6kgs	2.6kgs	2.6kgs

Optional stir bar：

Type	SP-A	SP-B	SP-C	SP-D	SP-E	SP-F	SP-G	SP-I
Dimension (mm)	Φ6X10	Φ6X20	Φ6X25	Φ6X30	Φ6X35	Φ6X45	Φ6X60	Φ6X70

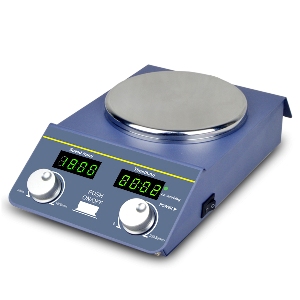

Digital Magnetic Stirrer SP-18

Product description:
Magnetic stirring provided with a stir bar. Humanized design for convenient operation to meet various heating and stirring experimental needs.

Parameter ：

plate size [mm]	φ135
Disk material	Stainless steel
Motor type	Brushless DC Motor
Motor input power [W]	15W
Voltage [VAC]	100-240
Frequency [Hz]	50/60
Number of stirring positions	1
The maximum amount of mixing (H2O) [L]	20
Stirring the maximum size [mm]	50
Speed range [rpm]	100-1800
Speed, time display	Digital Display
Dimensions (WxDxH) [mm]	270×156×70
Weight [kg]	2.3
Permissible ambient temperature [℃]	5-40
Permissible relative humidity	80%

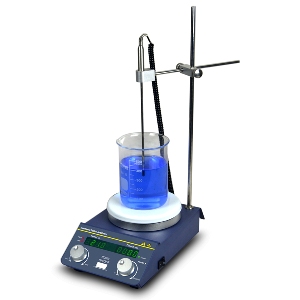

Digital Magnetic Hot Plate (heating) TP-350

Product description:
TP-350 Digital Magnetic Hot Plate (heating) is made of special aluminum alloy / stainless steel alloy. With special heating technique, the heating plate can reach temperature up to 340°C. Humanized design for convenient operation to meet various heating and stirring experimental needs.

Product features:
1. The heating plate is made of special Ceramic. Beautiful, antiseptic and easy for cleaning.
2. Special heating technique, the heating plate can reach temperature up to 340°C.
3. PID for temperature control. Two display windows. High precision measurement. Single button operation. Inner and outer thermocouple for thermometry. Silicon controlled for output. With couple broken protection function.
4. DC brushless motor make stable operation, low noise, long using life and no spark.
5. Metal plate shell, firm and durable, thermostability and anti-corrosion.
6. The control panel designed 30° slopes for convenient operation.

Parameter ：

Type	TP-350 Digital Magnetic Hot Plate (heating)	TP-350S Digital Magnetic Stirrer Hot Plate (heating & stirring)	SP-18 Digital Magnetic Stirrer (stirring)
Speed Range	/	50-1800rpm
Temperature Range	30 ~340°C		/
Temperature Control Method	Intelligent Digital Display Control & Silicon controlled		/
Temperature Accuracy	±1°C		/
Heating Plate Material	Ceramic		/
Diameter of Heating Plate	140mm
Power	220V/110V 50/60HZ		/

Optional stir bar ：

Type	SP-A	SP-B	SP-C	SP-D	SP-E	SP-F	SP-G	SP-I
Dimension (mm)	Φ6X10	Φ6X20	Φ6X25	Φ6X30	Φ6X35	Φ6X45	Φ6X60	Φ6X70

Digital Magnetic Hot Plate (heating) TP-350S

Product description:
The heating plate of the digital magnetic stirrer hot plate series is made of special Ceramic. With special heating technique, the heating plate can reach temperature up to 340°C. Magnetic stirring provided with a stir bar. Humanized design for convenient operation to meet various heating and stirring experimental needs.

Product features:
1. The heating plate is made of special Ceramic. Beautiful, antiseptic and easy for cleaning.
2. Special heating technique, the heating plate can reach temperature up to 340°C.
3. PID for temperature control. Two display windows. High precision measurement. Single button operation. Inner and outer thermocouple for thermometry. Silicon controlled for output. With couple broken protection function.
4. Available for heating and stirring standard/non-standard reaction flasks between 50ml and 20L.
5. DC brushless motor make stable operation, low noise, long using life and no spark.
6. Metal plate shell, firm and durable, thermostability and anti-corrosion.
7. The control panel designed 30° slopes for convenient operation.

Parameter ：

Type	TP-350 Digital Magnetic Hot Plate (heating)	TP-350S Digital Magnetic Stirrer Hot Plate (heating & stirring)	SP-18 Digital Magnetic Stirrer (stirring)
Speed Range	/	50-1800rpm
Temperature Range	30 ~340°C		/
Temperature Control Method	Intelligent Digital Display Control & Silicon controlled		/
Temperature Accuracy	±1°C		/
Heating Plate Material	Ceramic		/
Diameter of Heating Plate	140mm
Power	220V/110V 50/60HZ		/

Optional stir bar ：

Type	SP-A	SP-B	SP-C	SP-D	SP-E	SP-F	SP-G	SP-I
Dimension (mm)	Φ6X10	Φ6X20	Φ6X25	Φ6X30	Φ6X35	Φ6X45	Φ6X60	Φ6X70

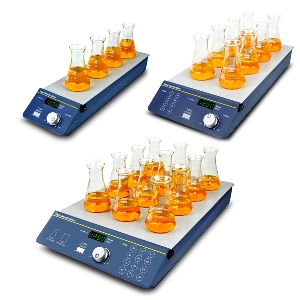

Multi-position Magnetic Stirrer SP-100/200/300

Product description:
SP-100 / SP-200 / SP-300 series multi-position magnetic stirrer is designed for the high-efficiency experiments and has 4/8/12 stir bar configurations to choose. It can use laboratory space effective. DC brushless motor make the model:low speed but stable, high speed but powerful with low noise. Stainless steel is coated by silicone resin film disk. Non-slip and anti-corrosion.

Product features:
1. Digital display stirring speed at real-time , stir bar operate synchronously and provide uniform agitation reaction conditions.
2. Efficient multi-position magnetic stirrer configure 4/8/12 stirring positions to use lab space effective.
3. DC brushless motor. Low speed but stable, high speed but powerful. Low noise and free maintenance.
4. Stainless steel is coated by silicone resin film disk. Non-slip and anti-corrosion.

Technical parameters ：

Model	SP-100	SP-200	SP-300
Stirring Point Quantity	4	8	12
Max. Size of Stirrer	40mm	40mm	40mm
Stick	400ml x 4	400ml x 4	400ml x 4
Max. Stir Capacity (H2O)	200 ~1200rpm	200 ~1200rpm	200 ~1200rpm
Speed Range	stainless steel with silicon	stainless steel with silicon	stainless steel with silicon
Platform Material	pad	pad	pad
Motor	brushless DC motor	brushless DC motor	brushless DC motor
Voltage	AC100 ~230V, 50/60Hz	AC100 ~230V, 50/60Hz	AC100 ~230V, 50/60Hz
Power	20W	20W	20W
Fuse	250V,1A, Ф5×20	250V,1A, Ф5×20	250V,1A, Ф5×20
Dimension (WxDxH)	115 x 480 x 50mm	205 x 480 x 50mm	295 x 480 x 50mm
Net Weight	3kgs	4kgs	5kgs

Exchangeable blocks for SP series ：

Type	SP-A	SP-B	SP-C	SP-D	SP-E	SP-F	SP-G	SP-I
Dimension (mm)	Φ6X10	Φ6X20	Φ6X25	Φ6X30	Φ6X35	Φ6X45	Φ6X60	Φ6X70

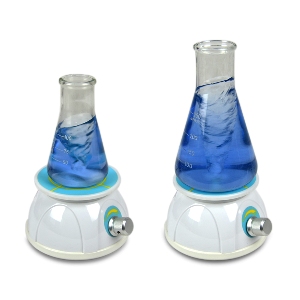

Mini Stirring Magnetic (Cute Stir) MINIP-25

Product description:
Mini stirring magnetic MINIP-25 is a mini-sized and portable magnetic stirrer with high standard reliability and durability. It has wide range of application.

Product features:
1. Distinct designed. Small and exquisite. Simple operation.
2. Long using life with no carbon brush motor.
3. Speed regulation stepless, large range of speed.
4. Strong magnetism to avoid stirrer jumping.
5. Convenient and portable. Meet different kinds of experimental demands.

parameters ：

Type	MINIP-25Mini Stirring Magnetic
Max. Capacity	250ml
Speed Range	0 - 2500 rpm
Platform Material	Plastic
Platform Size	Φ88mm
Stirrer Dimension	Φ8x40mm
Input/Output	1.2W/0.8W
Dimension	125x110x70mm
Net Weight	1.1kg
Power	AC90~230V/15W 50/60 Hz

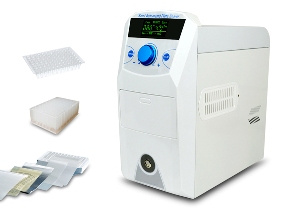

Semi Automated Plate Sealer PS-200

Product description:
PS-200 is a semi-automatic thermal sealer, which prevents sample loss and space cross infection caused in process of testing of various kinds of micro plate (PCR plate, deep well storage plate, Elisa plate and cell culture plate) by sealing various kinds of heat sealing films. With simple and elegant appearance and adjustable sealing pressure settings of sealing platen, it is easy to operate and accepts a wider range of plates, including standard plates and deep well plates. With variable temperature and time settings and rapid heating, its real temperature displays simultaneous.

Product features:
PS-200 is a semi-automatic thermal sealer, which prevents sample loss and space cross infection caused in process of testing of various kinds of micro plate (PCR plate, deep well storage plate, Elisa plate and cell culture plate) by sealing various kinds of heat sealing films. With simple and elegant appearance and adjustable sealing pressure settings of sealing platen, it is easy to operate and accepts a wider range of plates, including standard plates and deep well plates. With variable temperature and time settings and rapid heating, its real temperature displays simultaneous. PS-200 is applied to ordinary adhesive films, heat sealing films, optical heat sealing films (quantitative PCR), permanent heat sealing films. Instead of artificial sealing, automated sealing operation ensures seal platen firm. The uniform pressure ensures consistent results.
The PS-200 sealer using advanced ceramics platen heating technology avoids adhesion of seal films. Two sides of the body of the sealer are designed with windows, which is convent to clean and maintain the heating element, increasing its lifespan. Applying steel ball orbit makes less noise and gets more accurate location. Automated sleep mode and deep sleep mode can be set for energy saving. All the above makes PS-200 stand out and be an essential assistant to PCR instruments and quantitative PCR instruments.

parameters ：

Model	PS-200
Sealing Temperature Range	80 °C to 200 °C, (increments of1.0°C)
Temperature Accuracy	±1℃
Temperature Uniformity	±1℃
Sealing Time Range	0.5 ~ 10 sec. （increments of 0.1 sec）
Sealing pressure range	1-5 grade
Compatible Plate Materials	PP (Polypropylene)/PS (Polystyrene)/PE (Polyethylene)
Compatible Plate Types	Standard Micro plate Plates: PCR plate (skirted, semi-skirted, non-skirted), Deep-Well storage, Plates, Elisa Plates.
Sealing plate height	9mm ~ 48mm, no adjustment
Compatible sealing plate film:	1.Foil Polypropylene material, 2.Transparent polyester fiber- Polypropylene material, 3.transparent polymer material, 4.Thin layer transparent polymer material, 5. lamellar material
Front panel material:	Fireproof ABS
Sealing platen material:	Ceramics
Voltage	AC 220/110V, switchable, 50/60Hz
Maximum power:	300W
Fuse	250V,8A, Ф5×20
Dimension	W.180×D.350×H.380mm
Net Weight	12kgs

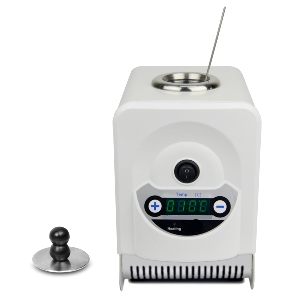

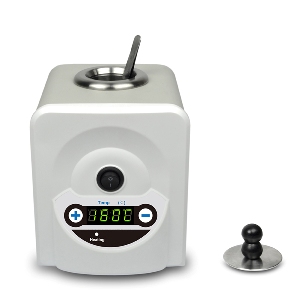

Glass Bead Sterilizers HY-300

Product description:
HY-300 glass bead sterilizer use a heated glass beads for small lab equipment for fast sterilization products. Sterilizers has compact design and effectively sterilize small solid metal and glassware within ten seconds. When glass beads are heated to about 300 ℃, it can effectively destroy bacteria and spores. The model is usually used for forceps, scissors, forceps, scalpels, needles, ring vaccination and inoculation needle and commonly used in research labs.

Product features:
1. Compact appearance design, digital display temperature at real-time. It can be used in ultra clean workbench.
2. Stainless steel inner container, built-in high-performance heating element, high precision of temperature controller and over temperature protection.
3. Inner temperature of container is equipped with high temperature sterilization bead can be heated to about 300 ℃.
4. Small volume, light weight, simple operation, long working life.
5. Randomly configurate diameter 1.5 ~ 2.0 mm of glass beads.

Technical parameters ：

Model	HY-300	HY-300D
Temp. Control Range	100℃ ~300℃	100℃ ~300℃
Temp. Stability	≤±5℃	≤±5℃
Heating Speed	≤25min	≤25min
Heating Well Volume	Φ40 x 80mm	Φ40 x 150mm
Glass Beads Capacity	150g	150g
Cover Material	Stainless Steel	Stainless Steel
Insulation Material	Green Mineral Wool	Green Mineral Wool
Voltage	AC 220 / AC 110V, 50/60Hz	AC 220 / AC 110V, 50/60Hz
Power	120W	300W
Fuse	250V,2A/3A, Ф5×20	250V,2A/3A, Ф5×20
Dimension (WxDxH)	130 x 150 x 200mm	130 x 150 x 240mm
Net Weight	2kgs	2.5kgs

Attention:
1. with clean, dry glass beads filled in sterile container. The standard depth below the edge of stainless steel container about 2cm. Please don’t use other fillers or liquid contact to container.
2. Turn on the power switch and take some time to heat. Then the vessel temperature can reach to the set temperature. Under the conditions of power turning on it will keep the internal temperature.
3. Don’t touch the glass beads or sterilization container before cooling! Avoid burns!
4. Insert the drying equipment needs to be sterilized to sterilized glass beads as much as possible at least 10s.
5. Turn off the power switch and the closed the cover after finished to prevent dust and foreign matter.
6. Sterilized glass beads must be cleaned at least once per week. Should wait until the instrument cooled completely when getting out the glass beads.
7. Reuse after strictly clean and dry. (Get the glass beads out and clean with mild detergent soap, After rinsing ,it can be dried)

Glass Bead Sterilizers HY-300D

Product description:
HY-300D glass bead sterilizer use a heated glass beads for small lab equipment for fast sterilization products. Sterilizers has compact design and effectively sterilize small solid metal and glassware within ten seconds. When glass beads are heated to about 300 ℃, it can effectively destroy bacteria and spores. The model is usually used for forceps, scissors, forceps, scalpels, needles, ring vaccination and inoculation needle and commonly used in research labs.

Technical parameters ：

Model	HY-300	HY-300D
Temp. Control Range	100℃ ~300℃	100℃ ~300℃
Temp. Stability	≤±5℃	≤±5℃
Heating Speed	≤25min	≤25min
Heating Well Volume	Φ40 x 80mm	Φ40 x 150mm
Glass Beads Capacity	150g	150g
Cover Material	Stainless Steel	Stainless Steel
Insulation Material	Green Mineral Wool	Green Mineral Wool
Voltage	AC 220 / AC 110V, 50/60Hz	AC 220 / AC 110V, 50/60Hz
Power	120W	300W
Fuse	250V,2A/3A, Ф5×20	250V,2A/3A, Ф5×20
Dimension (WxDxH)	130 x 150 x 200mm	130 x 150 x 240mm
Net Weight	2kgs	2.5kgs

Biological Indicator Incubator MINIB-100P

Product description:
MiniB-100P biological indicator incubator is the biological indicator for supporting equipment, small size, light weight is suitable for pressure steam sterilizer biological indicator, biological indicator for ethylene oxide sterilization and other biological indicator sterilization effect detection and cultivation.

Product features:
1. Unique design, small size, light weight, convenient movement, suitable for all occasions.
2. LCD display, temperature and time display simultaneously.
3. Automatically fault detection and buzzer alarm, temperature calibration function.
4. timing function, 0~999min
5. 24V DC power supply input, low power consumption, built-in over-temperature protection device, safe and reliable.
6. A variety of standard sample blocks for your choice, convenient replacement, the hole of block can be customized according to the size of tubes.

Technical parameters ：

Model	MINIB-100P Biological Indicator
Adjustable Temperature Range	RT+5℃ ~100℃
Uniformity Of Temperature (detected at 56 ℃)	≤±5℃
Temperature Stability	±0.5℃
Temperature Display Accuracy	0.1℃
Heating Time	<6min (从20℃ to 56℃)

Blocks replacement for MINIB-100P ：

Model	Hole And Tubes	Remark
MiniP-A	15 x φ10mm
MiniP-B	12x φ12mm
MiniP-C	6 x φ15mm
MiniP-D	6 x φ16mm
MiniP-E	18xφ9mm

Hand Held Homogenizer MT-30K

Product description:
The homogenizer MT-30K is smart hand held instrument for fast organization homogeneous, separation and emulsification. With different dispersing heads, it is appropriate for 0.5~250ml liquid sample, maximum speed is up to 35000rpm. Its working principle is making the sample circularly loop into a narrow space between the high speed and relative motion stator to shear and break the sample. E.g. tissue such as muscle, liver, breast, etc. can be completely homogenization in 10~30 seconds. It is applied in various territories such as bio-pharmaceuticals, gene research, organization broken, cell slurrying, clinicopathologic analysis, emulsions, nanometer materials scattering, polymerization reaction, cosmetics, ink&paint, fine chemical engineering, pesticide, prospection, environmental protection, energy sources, etc.

features:
1. Designed smart and light. Can operate in one hand.
2. Speed adjustable, digital display speed. Speed precisely controlled to avoid splashing.
3. Suitable for homogeneous dispersion of a small amount of sample in small container.
4. High quality stainless steel dispersing head, anti-corrosion, high temperature resistance for disinfecting.
5. Easy to take off the dispersing head for cleaning.
6. High speed and high efficiency motor, long life.
7. Optional H-type stand, height and angle can be adjusted, convenient to take and store.

parameters ：

Type	MT-30K Hand Held Homogenizer
Power Supply	230V / 50/60HZ
Power (Input / Output)	160W / 110W
Rotor Line Speed	6.3-14m/sec
Net Weight	0.7kg
Noise	72dB(A)
Speed Control Range	8000-35000rpm (digital display)
Dimension	46mm55mm230mm

Optional Accessories ：

Type	Handling Capacity	Diameter of Outer Head	Diameter of Inner Head	Gap between Outer and Inner Head	Min./Max. Dipping Depth	Length of Head	Material
MT-30K-A	0.5-50ml	6mm	3.9mm	0.1mm	20/90mm	150mm	316L
MT-30K-B	1-100ml	8mm	6.1mm	0.3mm	20/107mm	167mm
MT-30K-C	1-250ml	10mm	7.9mm	0.3mm	20/120mm	180mm
MT-30K-DH-Type Stand	H-type stand to keep the hand held homogenizer, height and angle adjustable

Mini Hand Held Homogenizer MT-13K

Product description:
The mini homogenizer MT-13K is hand-held designed. It is smart and light, easy to operate. With DC motor to drive the grinding pestle, configure 1.5ml centrifugal tube, efficiently grind trace tissue. The grinding pestle is light and reusable, convenient to be dismantled.

Applications:
1. Suitable for grinding various plant tissue sample such as root, stem, leaf, flower, fruit, seed, etc.
2. Suitable for grinding various animal tissue sample such as cerebrum, heart, lung, stomach, liver, thymus, kidney, intestine, lymphonodus, muscle, skeleton, etc.
3. Suitable for homogenate.

features:
1. Light and easy to operate, broad scope of application.
2. Use micro DC motor for grinding trace tissue, efficient and effective.
3. Grinding pestle is light and reusable, suitable for various sterile ways, convenient to be dismantled.

parameters ：

Type	MT-13K Mini Hand Held Homogenizer
Speed	13000rpm
Power	AC 220V
Noise	60dB
Net Weight	0.1kg
Dimension	25 x 25 x 160 mm

Black-box Type UV Analyzer BTU-6

Product description:
BTU - 6 Black-box type UV analyzer can send out long and short wave uv light with high UV intensity ,good stability and easy operation. It’s reliable and popular among customers. Mainly used in scientific research, production and other fields. Use widely available in biochemistry, medicine, samples of DNA, RNA electrophoresis gel observation analysis, detection of protein, nucleotide, etc.

features:
1. Instrument is installed 254 nm and 365 nm uv light source. Transmission of uv light use 312 nm uv light bulb be arranged closely.
2.312 - nm wavelength has small damage to the sample with high sensitivity.
3. Fully enclosed with high quality metal black-box. No need to operate in darkroom. Convenient to use, simple to operate.
4.Equipment can be installed digital camera to shoot and take photos.
5.Drawer type table is convenienttotake samples. Left and right sides of the opening door is convenient for visual operation.

parameters ：

Type	BTU-6
Transmission wavelength	312nm254nm365nm Optional （Standard configuration :312nm）
Transmission filter	200mmX150mm
Uv observation window	140 x 60mm
Lamp working time	＞5000小时
Input Voltage	AC 220V 50Hz
Power	8W x 6
Dimension	W.350×D.315×H.520mm
Net Weight	6kgs

Micro-Plate Centrifuge MINIP-2500

Product description:
MINIP-2500 micro-plate centrifuge is a unique mini instantaneous centrifuge which is special designed for the 96-hole micro plates. It can quickly spin down droplets and condensation. It is used before and after thermal cycling to improve PCR yield. Put the micro plate from the slots of the top vertically (leakage for liquid will be kept in the micro plate under the action of surface tension), the spin-down work is easily finished. Two operation modes humanized configured – short mix and time setting operation, makes the experiment more convenient and efficient.

features:
1. Wide applicable range. It suit for skirted, semi-skirted, non-skirted and all standard PCR plates.
2. Strong centrifugal power. Accelerate to 2500rpm quickly. From top speed to stop cost around 10 seconds.
3. Using DC brushless motor. Free of maintenance. Working stable and quietly.
4. Humanized design. Two modes - pressing for operating and setting time for operating - make the experiments more convenient and efficient.
5. Smart size, simple operation. The cover can be fully opened to 95°, convenient to put and fetch the plates.
6. Quickly spin down droplets and condensation. Used before and after thermal cycling to improve PCR yield.

Technical Parameters:：

Model	MiniP-2500 Micro-Plate Centrifuge
Capacity	2 PCR Plates
Rotor Speed	2500 rpm
G Force	500 g
Rotor	Fixed Vertical
Dimensions	219 x 190 x 186 mm
Weight	3 KG
Voltage	AC100V-230V 50-60 Hz

Mini Centrifuge Mini-4K

Product description:
The mini centrifuge series MINI-4K is perfect designed with novel and unique appearance. It is pretty and skillful, equipped with 2 types of rotors and several tube carriers for 2.0ml / 1.5ml / 0.5ml / 0.2ml tubes and 0.2ml x 8 PCR tube rank. It is designed for feeling. Open/close the cover will automatically start/stop the centrifuge. Built-in timing function. Humanism is fully displayed in its transparent roundness cover, several rotors, and tube carriers for choice.

Product Features:
1. Large radius rotor with 8 tube holes, centrifugal force is 1.5 times bigger than ordinary 6-hole rotor at the same rolling speed.
2. The cover switch is outward designed and superstructure automatically bounce 95 degrees which is convenient for one-hand operation.
3. The rotor is clip-on fixed. It is very convenient for rotors exchanging and pick-and-place.
4. LED display the rolling speed and timing.
5. Practice silent and stable. free-maintenance motor, long life and safe.
6. Delicate appearance. Multi-purpose to meet different experiments demands.

parameters ：

Model	Mini-4K	Mini-6K	Mini-7K	Mini-10K	Mini-10K+
Speed	4000rpm	6000rpm	7000rpm	10000rpm	3000rpm - 10000rpm (step 1000rpm)
Centrifugal Force	1200g	3000g	3400g	7500g	1000g-7500g
Sample Capacity	8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2ml tube carriers) 2 x 8 x 0.2ml PCR tube strip		8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2mltube carriers )		8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2ml tube carriers)2 x 8 x 0.2ml PCR tube strip (tube strip only used when speed≤6000rpm)
Time Range	1s - 99min59s			1s - 999min
Noise	≤45 dB		≤55dB
Dimension	176x156x121 (mm)
Net Weight	≤1.5kg
Power	220V/110V 50-60HZ

Applications:
1. Extract serum from blood 2. Extract the supernatant from a variety of samples
3. Rapid subsidence of samples 4. Separation of trace blood cells
5. Microbial sample processing 6. PCR experimental division centrifugal

Mini Centrifuge Mini-6K

Product description:
The mini centrifuge series MINI-6K is perfect designed with novel and unique appearance. It is pretty and skillful, equipped with 2 types of rotors and several tube carriers for 2.0ml / 1.5ml / 0.5ml / 0.2ml tubes and 0.2ml x 8 PCR tube rank. It is designed for feeling. Open/close the cover will automatically start/stop the centrifuge. Built-in timing function. Humanism is fully displayed in its transparent roundness cover, several rotors, and tube carriers for choice.

parameters ：

Model	Mini-4K	Mini-6K	Mini-7K	Mini-10K	Mini-10K+
Speed	4000rpm	6000rpm	7000rpm	10000rpm	3000rpm - 10000rpm (step 1000rpm)
Centrifugal Force	1200g	3000g	3400g	7500g	1000g-7500g
Sample Capacity	8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2ml tube carriers) 2 x 8 x 0.2ml PCR tube strip		8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2mltube carriers )		8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2ml tube carriers)2 x 8 x 0.2ml PCR tube strip (tube strip only used when speed≤6000rpm)
Time Range	1s - 99min59s			1s - 999min
Noise	≤45 dB		≤55dB
Dimension	176x156x121 (mm)
Net Weight	≤1.5kg
Power	220V/110V 50-60HZ

Mini Centrifuge Mini-7K

Product description:
The mini centrifuge series MINI-7K is perfect designed with novel and unique appearance. It is pretty and skillful, equipped with 2 types of rotors and several tube carriers for 2.0ml / 1.5ml / 0.5ml / 0.2ml tubes and 0.2ml x 8 PCR tube rank. It is designed for feeling. Open/close the cover will automatically start/stop the centrifuge. Built-in timing function. Humanism is fully displayed in its transparent roundness cover, several rotors, and tube carriers for choice.

parameters ：

Model	Mini-4K	Mini-6K	Mini-7K	Mini-10K	Mini-10K+
Speed	4000rpm	6000rpm	7000rpm	10000rpm	3000rpm - 10000rpm (step 1000rpm)
Centrifugal Force	1200g	3000g	3400g	7500g	1000g-7500g
Sample Capacity	8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2ml tube carriers) 2 x 8 x 0.2ml PCR tube strip		8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2mltube carriers )		8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2ml tube carriers)2 x 8 x 0.2ml PCR tube strip (tube strip only used when speed≤6000rpm)
Time Range	1s - 99min59s			1s - 999min
Noise	≤45 dB		≤55dB
Dimension	176x156x121 (mm)
Net Weight	≤1.5kg
Power	220V/110V 50-60HZ

Mini Centrifuge Mini-10K

Product description:
The mini centrifuge series MINI-10K is perfect designed with novel and unique appearance. It is pretty and skillful, equipped with 2 types of rotors and several tube carriers for 2.0ml / 1.5ml / 0.5ml / 0.2ml tubes and 0.2ml x 8 PCR tube rank. It is designed for feeling. Open/close the cover will automatically start/stop the centrifuge. Built-in timing function. Humanism is fully displayed in its transparent roundness cover, several rotors, and tube carriers for choice.

parameters ：

Model	Mini-4K	Mini-6K	Mini-7K	Mini-10K	Mini-10K+
Speed	4000rpm	6000rpm	7000rpm	10000rpm	3000rpm - 10000rpm (step 1000rpm)
Centrifugal Force	1200g	3000g	3400g	7500g	1000g-7500g
Sample Capacity	8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2ml tube carriers) 2 x 8 x 0.2ml PCR tube strip		8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2mltube carriers )		8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2ml tube carriers)2 x 8 x 0.2ml PCR tube strip (tube strip only used when speed≤6000rpm)
Time Range	1s - 99min59s			1s - 999min
Noise	≤45 dB		≤55dB
Dimension	176x156x121 (mm)
Net Weight	≤1.5kg
Power	220V/110V 50-60HZ

Mini Centrifuge Mini-10K+

Product description:
The mini centrifuge series MINI-10K+ is perfect designed with novel and unique appearance. It is pretty and skillful, equipped with 2 types of rotors and several tube carriers for 2.0ml /1.5ml / 0.5ml / 0.2ml tubes and 0.2ml x 8 PCR tube rank. It is designed for feeling. Open/close the cover will automatically start/stop the centrifuge. Built-in timing function. Humanism is fully displayed in its transparent roundness cover, several rotors, and tube carriers for choice.

parameters ：

Model	Mini-4K	Mini-6K	Mini-7K	Mini-10K	Mini-10K+
Speed	4000rpm	6000rpm	7000rpm	10000rpm	3000rpm - 10000rpm (step 1000rpm)
Centrifugal Force	1200g	3000g	3400g	7500g	1000g-7500g
Sample Capacity	8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2ml tube carriers) 2 x 8 x 0.2ml PCR tube strip		8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2mltube carriers )		8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2ml tube carriers)2 x 8 x 0.2ml PCR tube strip (tube strip only used when speed≤6000rpm)
Time Range	1s - 99min59s			1s - 999min
Noise	≤45 dB		≤55dB
Dimension	176x156x121 (mm)
Net Weight	≤1.5kg
Power	220V/110V 50-60HZ

Incubator Shaker ES-60+

Product description:
The incubator shaker ES-60+ is one temperature controlled biochemical instrument combined incubation and shaking function. It is widely used in cell culture, fermentation, hybridization, biochemistry, research of enzyme and cell tissue, etc. which required higher quality of temperature controlling and shaking speed. It can dynamically and statically cultivate microbial cell and all kinds of strains.

Features:
1. Integrate incubator and shaker. Save laboratory space.
2. Rational and compact designed, good temperature uniformity, low noisy.
3. Micro-processor controls temperature and shaking speed. Timing function built in.
4. Design of Human-machine interface and operation panel. Cover can be wide-angle opened, convenient to watch and fetch the sample.
5. Built-in cover switch. When the cover is open, air circulation, heating and shaking will automatically stop. No temperature overshoot problem.
6. Unique speed control circuit to ensure shaker smooth starting and avoid liquid spilling.
7. Speed of the circulation fan is adjustable to avoid high-speed of the circulation fan making the sample volatilizing.
8. Independent temperature alarm system. Heating is cut off when temperature over the limited value.
9. Alarm when program completes.
10. Brushless DC motor, long life and maintenance free.

parameters ：

Type	ES-60 Incubator Shaker	ES-60+ Incubator Shaker	ES-60E Micro-Plate Incubator Shaker
Temperature Control Range	R.T.+5 ~60℃
Temperature Display Accuracy	0.1℃
Temperature Control Accuracy@37°C	≤±0.3℃
Timing Range	0 ~99h59min
Shaking Speed	50 ~300 rpm		300 ~1200 rpm
Orbit	20mm (horizontal)		2mm (horizontal)
Power Supply	AC110V/220V 500W	AC110V/220V 700W	AC110V/220V 500W
Dimension	420x360x320mm	660x610x440mm	420x360x320mm
Optional Platform	Refer to “Platform Option”	Standard pallet PW-420（410x420x65mm）	Standard pallet PW-1500 （280x214x13mm）

Incubator Shaker ES-60

Product description:
The incubator shaker ES-60 is one temperature controlled biochemical instrument combined incubation and shaking function. It is widely used in cell culture, fermentation, hybridization, biochemistry, research of enzyme and cell tissue, etc. which required higher quality of temperature controlling and shaking speed. It can dynamically and statically cultivate microbial cell and all kinds of strains.。

parameters ：

Type	ES-60 Incubator Shaker	ES-60+ Incubator Shaker	ES-60E Micro-Plate Incubator Shaker
Temperature Control Range	R.T.+5 ~60℃
Temperature Display Accuracy	0.1℃
Temperature Control Accuracy@37°C	≤±0.3℃
Timing Range	0 ~99h59min
Shaking Speed	50 ~300 rpm		300 ~1200 rpm
Orbit	20mm (horizontal)		2mm (horizontal)
Power Supply	AC110V/220V 500W	AC110V/220V 700W	AC110V/220V 500W
Dimension	420x360x320mm	660x610x440mm	420x360x320mm
Optional Platform	Refer to “Platform Option”	Standard pallet PW-420（410x420x65mm）	Standard pallet PW-1500 （280x214x13mm）

Platforms for Option ：

P6-250 Platform	UP-12 Universal platform	PP12-100 Platform	PP-4 Flat platform	PP-4A Double Flat platform	PW-260 Universal platform

Incubator Shaker ES-60E

Product description:
The Micro-Plate incubator shaker ES-60E is one temperature controlled biochemical instrument combined incubation and shaking function. It is widely used in cell culture, fermentation, hybridization, biochemistry, research of enzyme and cell tissue, etc. which required higher quality of temperature controlling and shaking speed. It can dynamically and statically cultivate microbial cell and all kinds of strains.

parameters ：

Type	ES-60 Incubator Shaker	ES-60+ Incubator Shaker	ES-60E Micro-Plate Incubator Shaker
Temperature Control Range	R.T.+5 ~60℃
Temperature Display Accuracy	0.1℃
Temperature Control Accuracy@37°C	≤±0.3℃
Timing Range	0 ~99h59min
Shaking Speed	50 ~300 rpm		300 ~1200 rpm
Orbit	20mm (horizontal)		2mm (horizontal)
Power Supply	AC110V/220V 500W	AC110V/220V 700W	AC110V/220V 500W
Dimension	420x360x320mm	660x610x440mm	420x360x320mm
Optional Platform	Refer to “Platform Option”	Standard pallet PW-420（410x420x65mm）	Standard pallet PW-1500 （280x214x13mm）

Thermo Shaker Incubator (cooling) MTC-100

Product description:
MTC-100 Thermo Shaker Incubator (Cooling) is themo shaker incubator with fast mixing speed and integrates four function mixing, shaking, heating function and Cooling function. Combined with intelligent operation design, it not only can mix various micro volume tube, PCR plate, deep hole plate and micro plate and other common laboratory supplies, but also equipped he function of votexing and heating all kinds of tubes. It can meet the needs of different users.

Features:
1. Perfect radius and excellent dimensional technology blend with adjustable mixing speed.
2. Programmable. Efficient shaking and temperature control.
3. Restore from power off, recover to the pre-status automatically. (deleted)
4. Microprocessor controlled incubator. Good linearity of temperature control. Precise control of the shaking speed.
5. Timing function. Time range is from 0 to 100hours.
6. Various blocks to exchange, convenient for replacement.
7. Built-in temperature calibration function and short mixing function.
8. DC brushless motor drive, long life and free of maintenance.
9. Multiple safety protection function. Conform to CE safety standards, safe and reliable.

Technical Parameters:

Model	MTC-100 Thermo Shaker Incubator (cooling)	MTH-100 Thermo Shaker Incubator (hearting)
Temperature Control Range	0°C - 100°C	R.T.+5°C - 100°C
Block Temperature Uniformity	±0.3°C
Temperature Control Accuracy	±0.3°C
Display Accuracy	0.1°C
Heating Platform Temperature Accuracy	<0.5°C (detect @37°C)
Shaking Speed	300 - 1500 rpm	300 - 2000 rpm
Shaking Orbit	3mm (horizontal)
Timing Range	99h59min
Heating Time	<20min (from 20°C to 100°C)
Cooling Time	≤25min from R.T. to R.T.-20°C (detected below 30°C)	AC100V-230V 50-60 Hz
Cooling Speed	≥7°C/min (from 100°C to 20°C) ≥1.2°C/min (from R.T. to R.T.-20°C)	AC100V-230V 50-60 Hz
Maximum Power	200W
Dimension ( LxWxH)	270x196x170 mm
Net Weight	8.3 KG	6.8 KG
Block Selection	Refer to ” Exchangeable blocks for MTH-100/MTC-100 series”

3-in-1 model：

Plate (shaking and mixing)	tube holers (shaking and mixing)	Blocks (shaking ,mixing ,incubator)
PCR plates (skirted, semi-skirted, unskirted)	0.2 ml PCR tubes and PCR strips	Refer to ” Exchangeable blocks for MTH-100/MTC-100 series”
384 well PCR plate	0.5 ml Micro-test tubes
96- and 384- deepwell plates	1.5 ml/2.0ml Micro-test tubes
MTPS enzyme labeled plate

Conventional configuration:
MTC-100A / MTC-100B / MTC-100C / MTC-100D / MTC-100E
MTH-100A / MTH-100B / MTH-100C / MTH-100D / MTH-100E
E.g.: MTC-100C means select the type MTC-100 with Block type C

Exchangeable Blocks for MTH-100/MTC-100 series

parameters ：

Type	Description	Max. Temperature
Type
A	96 x 0.2ml PCR plate	100°C
B	54 x 0.5ml	100°C
C	35 x 1.5ml	100°C
D	35 x 2.0ml	100°C
E	20 x 0.5ml + 15 x 1.5ml	100°C
F	24 x dia. ≤ Φ12mm	100°C
G	32 x 0.2ml + 25 x 1.5ml	100°C
H	32 x 0.2ml + 10 x 0.5ml + 15 x 1.5ml	100°C
I	103 x 67 x 30 mm (water bath block)	100°C
J	96 x 0.2ml plate (flat bottom)	100°C
K	24 x 5ml (max. speed to 600rpm)	100°C
L	12 x 15ml (max. speed to 600rpm)	100°C
M	6 x 50ml (max. speed to 600rpm)	100°C
N	Customized	100°C
MIX-A	96 x 0.2ml tube stand	/
MIX-B	24 x 0.5ml tube stand	/
MIX-C	24 x 1.5/2.0ml tube stand	/

Thermo Shaker Incubator MTH-100

Product description:
MTH-100 Thermo Shaker Incubator (Heating) is themo shaker incubator with fast mixing speed and integrates three function mixing, shaking and heating function. Combined with intelligent operation design, it not only can mix various micro volume tube, PCR plate, deep hole plate and micro plate and other common laboratory supplies, but also equipped he function of vortexing and heating all kinds of tubes. It can meet the needs of different users.

Technical Parameters:

Model	MTC-100 Thermo Shaker Incubator (cooling)	MTH-100 Thermo Shaker Incubator (hearting)
Temperature Control Range	0°C - 100°C	R.T.+5°C - 100°C
Block Temperature Uniformity	±0.3°C
Temperature Control Accuracy	±0.3°C
Display Accuracy	0.1°C
Heating Platform Temperature Accuracy	<0.5°C (detect @37°C)
Shaking Speed	300 - 1500 rpm	300 - 2000 rpm
Shaking Orbit	3mm (horizontal)
Timing Range	99h59min
Heating Time	<20min (from 20°C to 100°C)
Cooling Time	≤25min from R.T. to R.T.-20°C (detected below 30°C)	AC100V-230V 50-60 Hz
Cooling Speed	≥7°C/min (from 100°C to 20°C) ≥1.2°C/min (from R.T. to R.T.-20°C)	AC100V-230V 50-60 Hz
Maximum Power	200W
Dimension ( LxWxH)	270x196x170 mm
Net Weight	8.3 KG	6.8 KG
Block Selection	Refer to ” Exchangeable blocks for MTH-100/MTC-100 series”

3-in-1 model：

Plate (shaking and mixing)	tube holers (shaking and mixing)	Blocks (shaking ,mixing ,incubator)
PCR plates (skirted, semi-skirted, unskirted)	0.2 ml PCR tubes and PCR strips	Refer to ” Exchangeable blocks for MTH-100/MTC-100 series”
384 well PCR plate	0.5 ml Micro-test tubes
96- and 384- deepwell plates	1.5 ml/2.0ml Micro-test tubes
MTPS enzyme labeled plate
