centrifuge
Mini Centrifuge
 |
|
Description: The mini centrifuge series is perfect designed with novel and unique appearance. It is pretty and skillful, equipped with 2 types of rotors and several tube carriers for 2.0ml / 1.5ml / 0.5ml / 0.2ml tubes and 0.2ml x 8 PCR tube rank. It is designed for feeling. Open/close the cover will automatically start/stop the centrifuge. Built-in timing function. Humanism is fully displayed in its transparent roundness cover, several rotors, and tube carriers for choice. |
Fixed Speed |
 Adjustable Speed |
|
Features: 1. Large radius rotor with 8 tube holes, centrifugal force is 1.5 times bigger than ordinary 6-hole rotor at the same rolling speed. 2. The cover switch is outward designed and superstructure automatically bounce 95 degrees which is convenient for one-hand operation. 3. The rotor is clip-on fixed. It is very convenient for rotors exchanging and pick-and-place. 4. LED display the rolling speed and timing. 5. Practice silent and stable. free-maintenance motor, long life and safe. 6. Delicate appearance. Multi-purpose to meet different experiments demands. |
||
|
Applications: 1. Extract serum from blood 2. Extract the supernatant from a variety of samples 3. Rapid subsidence of samples 4. Separation of trace blood cells 5. Microbial sample processing 6. PCR experimental division centrifugal |
| Model | AMT-M02 | AMT-M03 | AMT-M04 | AMT-M05 | AMT-M06 |
| Speed | 4000RPM (Fixed) | 6000RPM (Fixed) | 7000RPM (Fixed) | 10000RPM (Fixed) | 3000 ~ 10000RPM (Adjustable by step 1000RPM) |
| Centrifugal Force | 1200g | 3000g | 3400g | 7500g | 1000~7500g |
| Sample Capacity | 8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2ml tube carriers); 2 x 8 x 0.2ml PCR tube strip | 8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2mltube carriers) | 8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2ml tube carriers0; 2 x 8 x 0.2ml PCR tube strip (tube strip only used when speed≤6000rpm) | ||
| 1s ~ 99min59s | 1s ~ 999min | ||||
|
Noise |
≤45 dB | ≤55 dB | |||
| Dimension | 176x156x121mm | ||||
|
Net Weight |
≤1.5kg | ||||
| Power | 220V/110V 50-60HZ | ||||
|

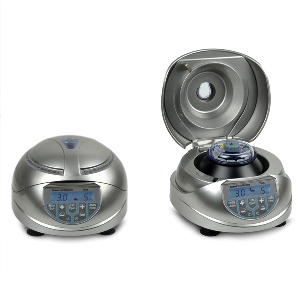

Miniature High-Speed Centrifuge MC-15
|
|
Product
description: The miniature high-speed centrifuge MC-15 is compact designed. It is streamline elegant and small size. With variable frequency motor, MC-15 has excellent acceleration to achieve target speed / stop to save time. Product features: 1.Compact and small size, save space. 2.Variable frequency motor for excellent acceleration. 3.High speed with low noise. 4.Highlight LCD displays speed and time. 5.Rotor is made of aluminium alloy, chemical attack resistant, accept dry heat sterilization. 6.Short Key makes “touch to operate” easy and convenient. 7.Excellent fluid air exchange technology. The unique three air flues design utmost lower the temperature rising. Protect temperature sensitivity samples. 8.Self-locking function, save and reliable. 9.Aluminium rotor and plastic rotor for optional. Aluminium rotor can bear heat disinfection. Plastic acceleration speed is faster than aluminium rotor. Technical parameters |
|
|
Type
|
MC-15
|
|
Speed Range
|
100 ~15000rpm (step:
100rpm)
|
|
Max. RCF
|
15000xg
|
|
Max. Capacity
|
2ml/1.5ml×12
|
|
Time Setting Range
|
20sec ~99min
|
| Time to Acheive Max. Speed | 15s |
| Time from Max. Speed to Stop | 15s |
| Motor | Variable Frequency Motor |
| Safety Performance | Self-locking, Over-speed, Over-temperature State Diagnosis System |
| Other Function | Speed/RCF Exchanging, Touch to Operate, Operating Status Display, BUZZEE |
| Voltage | 220-230V/110-120V, 50-60Hz |
| Power | 105W |
| Dimension (LxWxH) | 240mm x 220mm x 145mm |
| Net Weight | 5.1kgs |
|

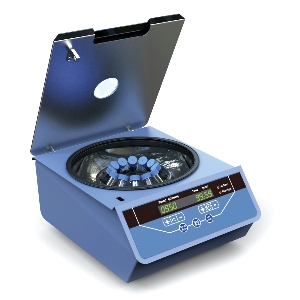

Low Speed Centrifuge MT-45
|
|
Product
description: MT-45 low speed centrifuge is suitable for extraction of medical products, blood bank, clinical trial and of blood serum, plasma, body fluids and biological specimen in biology laboratory. Product features: 1. LCD screen displays time and speed, convenient to set and read. 2. Three patterns: Short mix, timing set:30 to 59 seconds, continuous running. More efficient. 3. Sound alert after the rotor stops . LCD Screen processing display. 4. Adjustable speed:300 - 4500 rpm, relative centrifugal force:2490×g. High accuracy of speed and time, excellent performance. More samples is dealt at one time with high efficiency. 5. Equipped with multiple rotors, large capacity rotor specially made with multiple options. 6. Applied with high-performance CPU control mode, high speed accuracy and excellent performance. 7. High safety, low noise. High strength plastic alloy rotor and excellent balance technology for quiet and stable operation 8. Double-level safety lid. Electronic lock is for more safe and reliable rotor operation. 9. DC brushless motor drive quickly and effortlessly accelerates the rotor to set speed, free of maintenance. 10.Timer commences once the set speed is reached, so the separation time is more accurate. Reasonable brake curve makes sure no mixing of sample. More efficient separation. Technical parameters |
|
|
Model
|
MT-45
|
|
Speed Range
|
300 ~4500rpm
(increment: 100rpm)
|
|
Max. RCF
|
2490xg (increment:
100xg)
|
|
Speed Accuracy
|
±20rpm
|
|
Max. Sample
Capacity
|
10ml/7ml/5mlx16,
15mlx12, 50mlx6
|
| Time Range | 30 ~59s or continuous |
| Safety | self-lock, over-speed, statue diagnosis system |
| Working Noise | ≤56dB |
| Acceleration / Deceleration | around 20s |
| Other Functions | speed/RCF switch, touch operation, operating status display, alert |
| Voltage | AC100 ~230V, 50/60Hz |
| Power | 120W |
| Dimension (WxDxH) | 300 x 431 x178mm |
| Net weight | 19kgs |
|

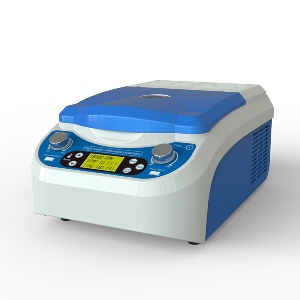

Micro High-Speed Refrigerated Centrifuge CM-16
|
|
Product description:
Product Features: |
|
|

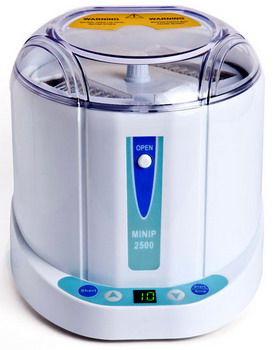

Micro Plate Centrifuge
AMT-M01
|
|
Description: The micro-plate centrifuge is a unique mini instantaneous centrifuge which is special designed for the 96-hole micro plates. It can quickly spin down droplets and condensation. It is used before and after thermal cycling to improve PCR yield. Put the micro plate from the slots of the top vertically (leakage for liquid will be kept in the micro plate under the action of surface tension), the spin-down work is easily finished. Two operation modes humanized configured – short mix and time setting operation, makes the experiment more convenient and efficient. |
|
|
Features: 1. Wide applicable range. It suit for skirted, semi-skirted, non-skirted and all standard PCR plates. 2. Strong centrifugal power. Accelerate to 2500rpm quickly. From top speed to stop cost around 10 seconds. 3. Using DC brushless motor. Free of maintenance. Working stable and quietly. 4. Humanized design. Two modes - pressing for operating and setting time for operating - make the experiments more convenient and efficient. 5. Smart size, simple operation. The cover can be fully opened to 95°, convenient to put and fetch the plates. 6. Quickly spin down droplets and condensation. Used before and after thermal cycling to improve PCR yield. |
|
|
Technical Data: 1. Capacity: 2 PCR Plates 2. Rotor Speed: 2500 rpm 3. G Force: 500g 4. Rotor: Fixed Vertical 5. Dimensions: 219 x 190 x 186mm 6. Weight: 3KG 7. Voltage: AC100V~230V, 50~60 Hz |
|

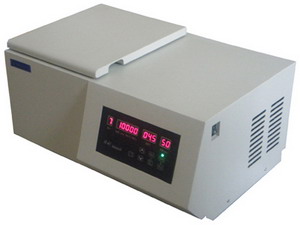

High Speed
Refrigerated Centrifuge GTR Serials
|
| Features: Brushless DC Motor. Microprocessor Control. It is special equipment for quickly separating mixed solution. Can be widely used in the field of scientific research, genetic engineering, genetics, life sciences, bio-chemistry, and medical treatment. To do assay, biochemical test, and separate soliquoid. Easy to operate, freeze quickly, suitable for the test in requirements of small quantity, low temperature. |
|
|
|
|
|
Max Speed
|
10000r/min
|
|
|
Max RCF
|
11000×g
|
|
|
Time Range
|
0~99min
|
|
|
Power
Supply
|
AC220V 50Hz 8A
|
|
|
Dimension
|
630×470×350mm
|
|
|
Weight
|
60kg
|
|
|
Capacity
|
1.5ml×12 Angle
rotor (standard)
1.5ml×24 Angle
rotor (for choose)
0.5ml×48 Angle
rotor (for choose)
5ml×8 Angle
rotor (for choose)
5ml×12 Angle
rotor (for choose)
10ml×12 Angle
rotor (for choose)
10ml×24 Angle
rotor (for choose)
30ml×6 Angle
rotor (for choose)
50ml×6 Angle
rotor (for choose)
100ml×4 angle
rotor (for choose)
100ml×4 swing
rotor
10ml×3×4 swing
rotor
10ml×8×4 swing
rotor
7ml×15×4 swing
rotor
5ml×10×4 test
tube rack, swing rotor (For choose)
96 hole costar
(swing rotor) (for choose)
|
 |
|
Order Number
|
GTR16-2
|
|
Max Speed
|
16000r/min
|
|
Max RCF
|
21400×g
|
|
Time Range
|
0~99min
|
|
Power Supply
|
AC220V 50Hz 8A
|
|
Dimension
|
630×470×350mm
|
|
Weight
|
60kg
|
|
Capacity
|
1.5ml×12 Angle rotor
(standard)
1.5ml×24 Angle rotor
(for choose)
0.5ml×48 Angle rotor
(for choose)
5ml×8 Angle rotor (for
choose)
5ml×12 Angle rotor
(for choose)
10ml×12 Angle rotor
(for choose)
10ml×24 Angle rotor
(for choose)
30ml×6 Angle rotor
(for choose)
50ml×6 Angle rotor
(for choose)
100ml×4 angle rotor
(for choose)
|
|
Order Number
|
GTR22-1
|
|
Max Speed
|
22000r/min
|
|
Max RCF
|
35100×g
|
|
Time Range
|
0~99min
|
|
Power Supply
|
AC220V 50Hz 8A
|
|
Dimension
|
630×470×350mm
|
|
Weight
|
60kg
|
|
Capacity
|
1.5ml×12 Angle rotor
(standard)
1.5ml×24 Angle rotor
(for choose)
0.5ml×48 Angle rotor
(for choose)
5ml×8 Angle rotor (for
choose)
5ml×12 Angle rotor
(for choose)
10ml×12 Angle rotor
(for choose)
10ml×24 Angle rotor
(for choose)
30ml×6 Angle rotor
(for choose)
50ml×6 Angle rotor
(for choose)
100ml×4 angle rotor
(for choose)
|
|

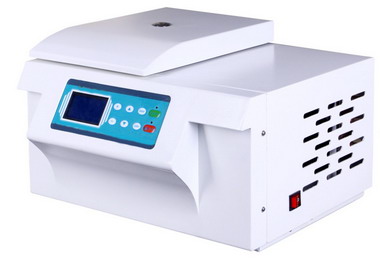

High Speed
Refrigerated Centrifuge TGL-16MC
|
|
Features:
1. Advanced CPU control system realizing microprocessor control, it can control rotate speed, temperature and relative centrifuge force. 2. Maintenance-free frequency conversion motor with an accurate temperature control system. Has the rotor identification function, prevent over-speed operation. Speed Range: 0~16000rpm, Speed Accuracy: ±20rpm. 3. Imported CFC-free compressor, two-cycle refrigeration, no pollution, high accuracy of temperature. Temperature control range is in -20℃~+40℃. Rotors can be still pre-cooling under a ban state. 4. The speed and the centrifugal force step adjustment is 10 RPM/10xg. Time control: 0-99 minutes , accuracy is ±1 SEC/continuous centrifugal/instantaneous centrifugal; 5. Stainless steel recessed, solid structure, and is suitable for sustainable use, air spring, easy open cover, automation lock cover ensure safety. 6. Digital Display, 10 operation programs designed, programmable operation. Standard English Language Display. 7. Equipped with door cover protection, with the self-diagnostic system and protection for imbalance, over-speed and over-temperature. People can monitor the centrifuge process to ensure the safe operation. 8. Rotors adopted super-hard aluminum alloy by the special craft manufacture, have the sealing performance and infinite time high temperature resistant alexipharmic function. |
|
| Max Speed | 16000r/min | ||||
| Max RCF | 17800xg | ||||
| Max Capacity | 8×5ml | ||||
| Speed Accuracy | ±20r/min | ||||
| Temp Accuracy | ±1℃ | ||||
| Temp Range | -20℃~+40℃ | ||||
| Timer Range | 0~99min | ||||
| Noise | ≤60dB(A) | ||||
| Display | LCD Display/Digital Display | ||||
| Motor | Frequency Brushless motor | ||||
| Power Supply | AC220v 50Hz 15A | ||||
| Dimension | 310×450×330mm(L×W×H) | ||||
| Weight | 41kg | ||||
| Angle Rotor | |||||
| Number | Max Speed | Max RCF | Capacity | ||
| 1 | 16000r/min | 17800xg | 12×1.5/2ml | ||
| 2 | 13000r/min | 11400xg | 8×5ml | ||
| 3 | 16000r/min | 14800xg | 18×0.2/0.5ml | ||
|
High Speed
Refrigerated Centrifuge D3024R
|
|
Features •User-friendly large LCD display provides all visual information •Quiet and stable operation benefit lab environment •Brushless motor drives quickly and effortlessly accelerates the rotor to set speed •Fully autoclavable Bio-safe rotor •Dual door interlock design, more safe •Powerful cooling system guarantee 4℃ at maximum speed •High performance price ratio and cost effective operation |
|
| Max. Speed | 15000rpm (300-15000rpm), increment:10rpm |
| Max. RCF | 21380×g, increment:10×g |
| Rotor | 2ml×24, 0.5ml×36, PCR8 serial tube |
| Run Time | 30sec~99min~HOLD (Continuous operation) |
| Temperature Range | |
| Refrigerant |
HFC |
| Driving Motor | Brushless Motor |
| Safety Devices | Door Interlock, Over-Speed/Over-Temperature Detector, Automatic Internal Diagnosis |
| Power | Single-Phase, 220v~240v,50Hz/60Hz,10A; 110v~120v,50Hz/60Hz,10A |
| Dimensions | (L)338 × (W)580 × (H)324mm |
| Weight | 30kg |
| Additional Features | Speed/Acceleration switch, Short-Time Run Function, sound-alert Function |
|
High Speed
Micro Centrifuge D3024
|
|
Features •User-friendly large LCD display provides all visual information ； •Quiet and stable operation benefit lab environment； •Brushless motor drives quickly and effortlessly accelerates the rotor to set speed； •Fully autoclavable Bio-safe rotor； •Dual door interlock design, more safe； •Special double air cooling design to keep lower rotor temperature； •High performance price ratio and cost effective operation |
|
| Max. Speed | 15000rpm (300-15000rpm), increment:10rpm |
| Max. RCF | 21380×g, increment:10×g |
| Rotor | 2ml×24, 0.5ml×36, PCR8 serial tube |
| Run Time | 30sec~99min~HOLD (Continuous operation) |
| Driving Motor | Brushless Motor |
| Safety Devices | Door Interlock, Over-Speed/Over-Temperature Detector, Automatic Internal Diagnosis |
| Power | Single-Phase, 220v~240v, 50Hz/60Hz,5A; 100v~120v, 50Hz/60Hz,8A |
| Dimensions | (L)280 × (D)364 × (H)266mm |
| Weight | 12kg |
| Additional Features | Speed/Acceleration switch, Short-Time Run Function, sound-alert Function |
|

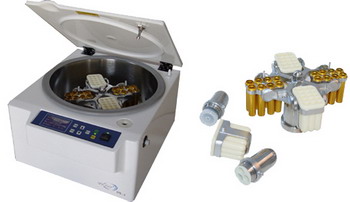

Low Speed
Centrifuge DT5-3
|
|
Features: Brushless
DC Motor. SCM-controlled. Preset rotation speed, time and centrifugal
force. Liquid crystal display, touch screen. Pre-warning and alarm system to provide various protections. New panel design, easy to operate. A preferable centrifuge for hospital clinical examinations, and centrosomes examinations. |
|
Max Speed
|
5000r/min
|
 |
|
Max RCF
|
4360×g
|
|
|
Time Range
|
0~999min
|
|
|
Power
Supply
|
AC220V 50Hz 8A
|
|
|
Dimension
|
510×410×310 mm
|
|
|
Weight
|
30kg
|
|
|
Capacity
|
100ml×4
10ml×3×4
10ml×8×4
7ml×15×4
5ml×10×4, 5ml
x 10 x 12 (test
tube rack, optional)
96 hole costar
(optional)
|
|
High Speed Mini
Centrifuge D2012
|
Features
|
|
| Max. Speed | 15000rpm (500-15000rpm), increment:100rpm |
| Max. RCF | 15100×g, increment: 100rpm×g |
| Rotor | 2ml×12 |
| Run Time | 30sec~99min~HOLD (Continuous operation) |
| Driving Motor | Brushless DC motor |
| Safety Devices | Door Interlock, Over-Speed/Over-Temperature Detector, Automatic Internal Diagnosis |
| Power |
Single-phase, 100V～240V,
50Hz/60Hz, |
| Dimensions | (L) 255×(W) 245× (H) 140mm |
| Weight | 6kg |
| Additional Features | Speed/Acceleration switch, Short-Time Run Function, sound-alert Function |
|

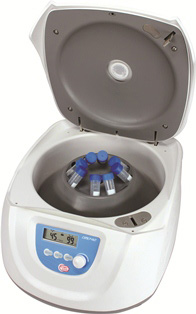

Clinical Mini
Centrifuge D0412
|
|
This Clinical Centrifuge
is ideal for the separation of serum, plasma, urea, blood samples and
other routine applications in hospital and research laboratories. It
conforms to international safety standards and regulations, have passed
the explosion-proof test and are certified with CE, cTUVus and FCC. MCA
test according to IEC/EN61010-2-20 including explosion-proof and
bio-safe tests. Passed EN61010-2-101:2002 requirements for invitro
diagnostic (IVD) medical equipment. Features: 1. High accuracy of speed, excellent performance 2. CPU controls all operating parameters including speed and time 3. RPM or G-force can be set and displayed 4. Operation can be timed from 30 seconds to 99 minutes or continuous running 5. Timer commences once the set speed is reached, so the separation time is more accurate 6. Gentle braking at low speeds with efficient separation 7. Parameters can be modified after the set speed is reached 8. Quick spins are possible by pressing and holding PULSE key 9. Automatic release the lid when operation has stopped to save processing time 10. Easy-to-read backlit LCD processing display and sound alert 11. Can be pulse accelerated and held at speed 12. High strength plastic rotor and excellent balance technology for quiet and stable operation 13. Brushless motor drive quickly and effortlessly accelerates the rotor to set speed |
|
|
Specifications: Max. Speed [rpm] 300-4500, increment: 100 Max. RCF [×g] 2490×g, increment: 100×g Speed Accuracy [rpm] ±20 Rotor Capacity 12×10ml/7ml/5ml; 8×15ml Run Time 30sec-99min-HOLD (Continuous operation) Driving Motor Brushless DC motor Safety Devices Door interlock, Over-speed detector; Over-temperature detector; Automatic internal diagnosis Power Single-phase, 110V-240V, 50Hz/60Hz, 3A Noise level [dB] ≤56 Acceleration/Braking time [Sec] 20s↑20s↓ Dimensions [mm] (L)255 ×(W)245×(H)140 Weight 6 kg Additional Features Speed/Acceleration switch; Short-time |
|
|
Rotor type |
Available tubes |
Tube quantity |
Dimension (Ф×L mm) |
Adapters |
Maximum speed (rpm) |
Radius (cm) |
|
A12-10P |
15ml con |
8 | 17×120 | 4500 | 11 | |
1.5-5ml vacu
 |
12 | 13×82 |
A10P15 & plug |
4500 | 9.8 | |
4-7 ml vacu
 |
12 | 13×106 |
A10P15 |
4500 | 11 | |
| 16×75 |
A10P15 & plug
|
9.8 | ||||
8.5-10 ml vacu |
12 | 16×107 |
A10P15
 |
4500 | 11 | |
2.7-3 ml (EU) collection
tube |
12 | 11×66 |
A10P15 & plug
|
4500 | 9.8 | |
7.5-8.2 ml (EU) collection tube  |
12 | 15×92 |
A10P15
|
4500 | 11 | |
| REMARK: A12-10P rotor is made of plastic and cannot be autoclaved or UV irradiation, only ordinary sterilization can be used. | ||||||
|

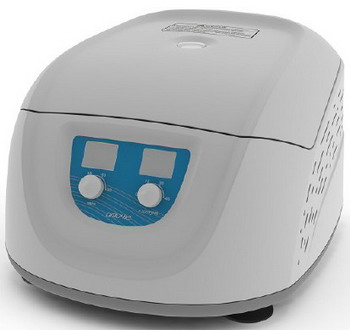

Economical Clinical Mini
Centrifuge D0412E
|
|
DM0412E is an economical
centrifuge according to model DM0412, difference as follows and others
is same: DM0412 is an Micro-computer control whereas, DM0412E is analog controlled. Micro-computer control gives high accuracy speed control. DM0412 has digital display whereas, DM0412E is Scale display. DM0412 has build in with rpm/rcf switch function. Whereas, DM0412E does not. DM0412 build with electrical lock whereas, DM0412E is mechanical lock. DM0412 is DC brushless motor, it is no pollution and free maintainance. Whereas, DM0412E is DC brush motor. |
|
|

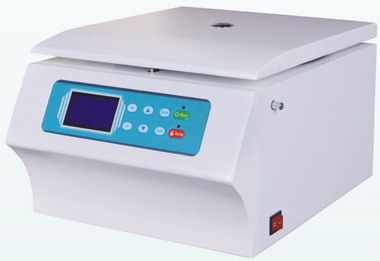

Benchtop Low Speed
Centrifuge TD4A-1
(Digital Display) & TD4A-2 (LCD Display)
|
|
Features: Steel structure, simple-compact,light-weight and low-noise. |
|
|
Model |
TD4A-1 (Digital) , TD4A-2 (LCD) |
||
|
Max Speed |
4000r/min |
Max RCF |
|
| NO.1 Angle Rotor |
4 x 50ml (standard) |
4000r/min |
2680×g |
|
NO.2 Swing Rotor |
4 x 50ml (optional) |
4000r/min |
2680×g |
|
NO.3 Swing Rotor |
12/24 x 10ml (optional) |
4000r/min |
2680×g |
|
NO.4 Swing Rotor |
8 x 15ml (optional) |
4000r/min |
2680×g |
|
Motor |
Brushless DC Motor |
||
|
Timer Range |
0~99min |
||
|
Noise |
≤50dB(A) |
||
|
Power Supply |
AC220v 50Hz 2A |
||
|
Dimension |
Digital Display: 460×360×270mm(L×W×H) |
||
|
LCD Display: 500×360×265mm(L×W×H) |
|||
|
Weight |
Digital Display: 19.5kg LCD Display: 21kg |
||
|

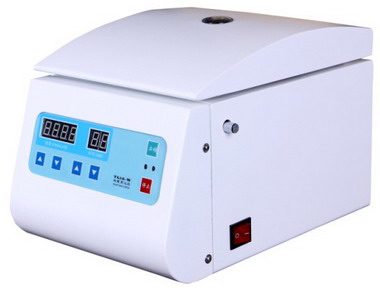

Benchtop High Speed
Centrifuge TG-16W
|
|
Features: 1. The shell adopts steel structure, with the built-in protection of steel inside; simple-compact, low-noise. 2. Adopt advanced CPU control system realizing microprocessor control, it can control rotate speed, time and relative centrifuge force. 3. Maintenance-free frequency conversion motor with an accurate control system. Speed Range: 0~16000rpm, Speed Accuracy:±50rpm. 4. The speed and the centrifugal force step adjustment is 10 RPM/10xg. Time control: 0-99 minutes, accuracy is ±1 SEC/continuous centrifugal/ instantaneous centrifugal; 5. Stainless steel recessed, solid structure, and is suitable for sustainable use, air spring, easy open cover, automation lock cover ensure safety. 6. Equipped with door cover protection, with the self-diagnostic system and protection for imbalance, over-speed and over-temperature. People can monitor the centrifuge process to ensure the safe operation. |
|
| Note: Rotor stand packing is only 1, please choose 1 from the 3. |
| Max Speed | 16000r/min | ||
| Max RCF | 17800xg | ||
| NO.1 Angle Rotor | 12×1.5/2.2ml | 16000r/min | 17800×g |
| NO.2 Angle Rotor | 8×5ml | 13000r/min | 11400×g |
| NO.3 Angle Rotor | 18×0.2/0.5ml | 13000r/min | 11400×g |
| Motor | Brushless DC Motor | ||
| Timer Range | 0~99min | ||
| Noise | ≤50dB(A) | ||
| Power Supply | AC220v 50Hz 2A | ||
| Dimension | 330×220×210mm(L×W×H) | ||
| Weight | 10kg | ||
|

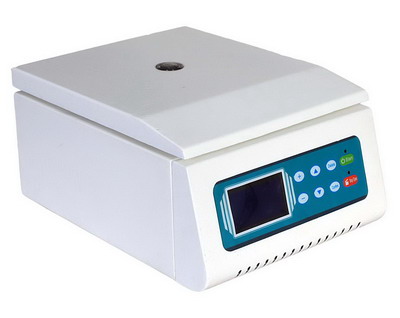

Hematocrit
Centrifuge TG-12W
|
|
Features: 1. TG12 Capillary blood centrifuge is mainly used to test the blood capillary hematocrit, separation of the micro-blood and micro-capacity. 2. The machine is full made of stainless steel, built-in steel protection, compact and concise. 3. Adopt advanced CPU control system realizing microprocessor control, it can control rotate speed, temperature and relative centrifuge force. 4. Stainless steel recessed and solid structure is for continuous usage, the pneumatic spring and automatic locked cover can assure the security. 5. Complying with CE security certification, and certified by ISO9001 and 13485 quality system. |
|
|
Characteristics 1. Computer controlled, digital display, touchable panel, no pollution 2. Electrical Lock, Safety Mechanism 3. Fast Speed Up and Down 4. Self Balance function |
|
|
Specification 1. Maximum Rotation Speed: 12000r/min 2. Rotor Capacity: 12,24,36 pieces of Capillary 3. Timing Range: 0-99min 4. Rotation Accuracy: +/-20r/min 5. Power: AC 220V /110V 6. Noise: <55db(A) 7. Dimensions: 500*360*265mm 8. Net Weight: 21kg |
|

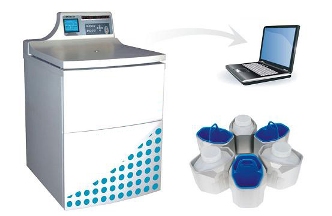

Super Large Capacity Refrigerated
Centrifuge DL8M-12L
|
|
Feature: 1. Advanced microprocessor control and direct drive system to make the drive system work more stably. 2. Use the compressor from TAIKANG, FRENCH. with the accurate temperature control system. 3. Max capacity:6×2400ml or processing 18 pieces of 400ml blood bag at one time. 4. The machine has a easy-going operator interface with the help of Soft-touch panel, liquid and digital display, program operation. 5. To ensure high-quality operations You can design 35 operation programs, It let you control the speed rates from 0-9 profiles, you can quickly recall up to 9 daily-use programmable operation choose the best centrifugal process and get the best result. 6. With the self-diagnostic system and protection for imbalance. over speed, over temperature. This machine can make a great protection for people and machine. 7. Widely used in the field of blood station, pharmaceutical factory, biochemistry. biological products and so on. |
|
| Model | DL8M-12L |
| DL8M-12L | 4600r/min |
| Max RCF | 7060xg |
| Max Capacity | 6×2400ml、6×3×400ml |
| Speed Accuracy | ±50r/min |
| Timer Range | 0-23h 59 min |
| ac/dc Rate | 0-9grade |
| control&drive | microprocessor control/direct drive |
| Daily-use Program | 9 |
| Pragram Storage | 35 |
| Refrigeration System | R404aNon Refrigeration System |
| Motir Power | 3KW |
| Pefrigerator Power | 2.5KW |
| Noise | ≤65dB(A) |
| Power Supply | AC220v 50Hz 35A |
| Weight | 500kg |
| Dimension | 960×860×1200mm(L×W×H) |
|
Rotor |
Max Speed |
Max RCF |
Capacity |
| NO.1 Swing Rotor | 4000r/min | 5900 xg | 2×6×1000 ml |
| NO.2 Swing Rotor | 4000r/min | 7060 xg | 6×2400 ml |
| NO.3 Swing Rotor | 4000r/min | 5900 xg | 24×200ml 12×400-500m |
