DO Meter

Dissolved Oxygen (do) meters

PORTABLE DISSOLVED OXYGEN METER AMT07

Feature:
1. Microprocessor based for fast and accurate measurements.
2. Special viewing angle designed of waterproof housing IP 57 rated. It floats on water.
3. Large LCD display and Temperature Simultaneously.
4. Simple to calibrate by one keyboard and automatic temperature compensation (ATC), Manual Salinity (MSC) and Altitude (MAC) Compensation.
5. Multi-functions with Data-hold, Max/Min and shows PTS after calibration. Degree ºC/ºF are switchable.
6. Low battery and consumption indicator. Auto power shut off after 10 minutes of non use.
7. Easy to replace electrode module and the type of electrode would be recognized automatically and shown in display during insertion.

Specifications:
	DO	O2	Temp
Range	0~20.00mg/L	0~200%	0~90.0ºC
Accuracy	±0.2 + 1digit	±2% FS	±0.2+1 digit
Resolution	0.01	0.1	0.1
ATC	0~50ºC
MSC	0~50ppt
MAC	0-20000 ft
Calibration	100% in air
Power	DC1.5V x 4 battery AAA/UM-4
Dimensions	Meter: 195 x 40 x 36 mm, Kits: 230 x 205 x 50 mm
Weight	Meter: 135g(with battery), Kits: 780g

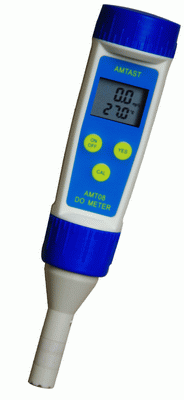

PORTABLE DISSOLVED OXYGEN METER AMT08

Feature: 1. Microprocessor based for fast and accurate measurements. 2. Waterproof housing IP 57 rated. It floats on water. 3. Large LCD display and Temperature Simultaneously. 4. Auto Power Off
Range:	0.0~19.9mg/L
Resolution:	0.1mg/L
Accuracy:	±0.5mg/L
Temp.:	0.0~99.9ºC
Temp. Resolution:	0.1ºC
Temp. Accuracy:	±0.5ºC
ATC:	5~45ºC
Calibration Alarm:	Yes
Auto Off	After 10 minutes
Power:	4 x 1.5V Button Cell
Size:	1703737mm
Weight:	90g

PORTABLE DISSOLVED OXYGEN METER DO-820/821

Automatic Calibration:
The meter can be calibrated by one or two points. The meter with function of auto recognition when in calibration. If you used solution by mistake, The meter will display tips automatically and save the original value.
Automatic Temperature Compensation:
Due to influence on the range of dissolvability and diffusion caused by temperature, the meter must compensate temperature when measure dissolved oxygen. This series with function of automatic temperature compensation and measurement bring your convenience. After the meter's sensor connected to host, it will enter temperature measurement and compensation mode automatically.
Salinity Coefficient and Atmospheric Pressure:
The salt dissolved in solution will limit oxygen content. Relationship between oxygen's concentration and nutrient changed with the salinity of sample solution. The meters can set salinity value in the range of 0 to 35g/L, and can set atmospheric pressure in the range of 450 to 850 mmHg.
Save Data:
The meter can save data 48 sets. Press [SAVE], and the meter will store current measured value automatically and serial number, date, time and other information.
Output Data:
The data stored in meter can be sent to PC through link. You can also save measured value or print out test report via software.
Multi-Measurement Units:
The meter can set parameter units accord with your country. E.G The conversion between measured units mg/L and ppm; Pressure units kPa and mmHg; Temperature units ºC and ºF.

Model	DO-820	DO-821
Dissolved Oxygen Range	0.0~20.0mg/L or ppm	0.0~20.0mg/L or ppm
Resolution	0.1mg/L	0.01mg/L
Dissolved Oxygen Accuracy	±0.5mg/L	±0.3mg/L
Saturation of Oxygen	0.0~200.0%	0.0~200.0%
Accuracy	±10.00%	±5.00%
Temperature Range	0.0~50.0^oC or 32~122ºF
Temperature Accuracy	±1^oC, ±1.8ºF
Temperature Compensation	0.0~40.0ºC, Automatic
Calibration Points	1 or 2 Points
Salinity Correction	0~35g/L, Adjustable
Atmospheric Pressure Correction	450~850mmHg or 60.0~112.5kPa
Memory	48
Output	USB
Power Requirement	9V/800mA Battery
Display	4.3 inch LCD
Dimension	185(L) x 88(W) x 32(H)mm
Weight	300g

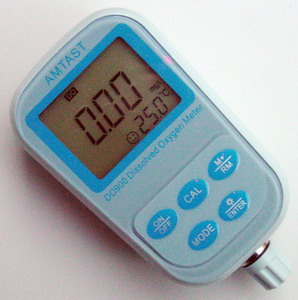

PORTABLE DISSOLVED OXYGEN METER DO900

DO900 precision dissolved oxygen meter are used to measure amount of gaseous oxygen dissolved in a liquids.
Specifications and Features:
Range: 0-40.00 mg/L (ppm)
Accuracy: +-0.10% F.S.
ATC: 0-45ºC
Automatic Salinity Compensation: 0-45ppt
Manual Air Pressure Compensation: 66-200kPa
IP57 waterproof
Polarogram type DO electrode with special electrode calibration sets, electrode polarization for only 3-5 minutes
DO electrode can simultaneously measure DO, Conductivity and Temperature to realize automatic salinity compensation for DO measurement.

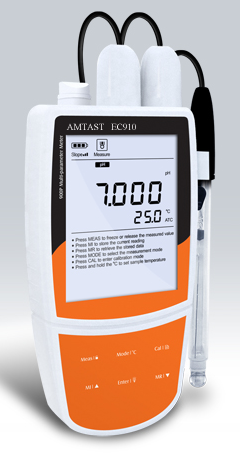

10 IN 1 pH/mV Conductivity/TDS/DO Meter EC910 (Chinese Probe) EC910X (UK Probe)

Features: High accuracy multi parameter water quality meter includes 8 measurement modes, the meter is suitable for measuring the pH, ORP, Ion concentration, Conductivity, TDS, Salinity, Resistivity and Dissolved Oxygen of the liquids.
pH Mode: • High accuracy portable multi parameter water quality meter is equipped with a large backlit LCD display. • 1 to 5 points push-button calibration with auto-buffer recognition. • Selectable pH buffer standards (USA/NIST/DIN) or using the custom calibration solutions. • Automatic electrode slope display helps user decide whether to replace sensor.
ORP Mode: • Single point offset calibration allows adjusting the displayed value to a known standard. • Relative and absolute millivolt measurement modes provide accurate ORP readings.
Ion Mode: • 2 to 5 points calibration including the eight concentration calibration points can be selected. • Automatically recognize ion selective electrodes, does not need to specify type of ion. • Direct ion concentration readout simplifies the elaborate measurement process. • Selectable multiple concentration units including the ppm, mg/L and mol/L.
Conductivity/TDS/Salinity/Resistivity Mode: • 1 to 5 points push-button calibration with automatic calibration solution recognition. • Selectable cell constants (0.1/1/10), normalization temperatures (20/25ºC), TDS conversion factors, seawater and practical salinity measurement modes.
Dissolved Oxygen Mode: • 1 or 2 points calibration using air-saturated water and zero oxygen solution. • Manual salinity and barometric pressure compensation improve the measurement accuracy.
Other Features: • Automatic Temperature Compensation provides accurate reading over the entire range. • Calibration Due Reminder prompts user to calibrate the meter regularly. • Stability indicator automatically shows current measurement status. • Auto-Hold function freezes stable measured value for easy viewing and recording. • Manual temperature calibration corrects temperature deviation. • Selectable temperature unit (ºC or ºC) meets different application requirements. • Automatic electrode diagnosis shows zero point offset and slope of the electrode. • Help message as a operational guide that helps you quickly begin using the meter. • System menu allows setting the 15 parameters, including the calibration points, resolutions, stability conditions, measurement units, etc. • Reset feature automatically resumes all parameters back to factory default options. • Expanded memory stores and recalls up to 500 readings. • Built-in real-time clock stamps stored data to meet GLP standard. • Stored data can be transferred into computer by USB communication interface. • Multi-mode power scheme (battery, power adapter, computer's USB port) ensures that use the meter smoothly.

Specifications:

1. pH	•Range: -2.000~20.000pH •Accuracy: ±0.002pH •Resolution: 0.1, 0.01, 0.001pH •Calibration Points: 1 to 5 points, USA, NIST, DIN Standards •Temperature Compensation: 0~100ºC, 32~212ºF, Manual or Automatic
2. mV	•Range: -1999.9~1999.9mV •Accuracy: ±0.2mV •Resolution: 0.1, 1mV •Calibration Points: 1 point (Only for Relative mV mode) •Calibration Range: ±200mV
3. Ion	•Range: 0.001~19999ppm, mg/L, mol/L (Depending on range of ISE) •Accuracy: ±0.5% F.S (Monovalent), ±1% F.S (Divalent) •Resolution: 0.001, 0.01, 0.1, 1 •Calibration Points: 2 to 5 points •Calibration Solutions: 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000ppm, mol/L, mg/L
4. Conductivity	•Range: 0~20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm •Accuracy: ±0.5% F.S •Calibration Points: 1 to 5 points •Calibration Solutions: 10µS/cm, 84µS/cm,1413µS/cm,12.88mS/cm,111.8mS/cm •Temperature Compensation: 0~100ºC, 32~212ºF, Manual or Automatic •Temperature Coefficient: 0.0~10.0%/ºC •Compensation Modes: Linear or Pure Water •Cell Constant: K=0.1, 1, 10 •Normalization Temperature: 20 or 25ºC
5. TDS	•Range: 0~10ppt (Max. 20ppt, depending on factor setting) •Accuracy: ±1% F.S •TDS Factor: 0.1~1.0 (Default 0.5)
6. Salinity	•Range: 0~10ppt (Max. 80ppt) •Accuracy: ±1% F.S •Measurement Modes: Seawater or Practical Salinity
7. Resistivity	•Range: 0~100MΩ •Accuracy: ±1% F.S •Resolution: 0.01, 0.1, 1
8. Dissolved Oxygen (DO)	•Range: 0.00~20.00mg/L (or ppm) •Accuracy: ±0.2mg/L •Resolution: 0.01mg/L •Calibration Points: 1 or 2 points •Temperature Compensation: 0~50ºC, 32~122ºF •Pressure Correction: 60.0~112.5kPa, 450~850mmHg •Salinity Correction: 0~50g/L
9. Saturation of Oxygen	•Range: 0.0~200.0% •Accuracy: ±2.0% •Resolution: 0.1%
10. Temperature	•Range: 0~105ºC, 32~221ºF •Accuracy: ±0.5ºC, ±0.9ºF •Resolution: 0.1ºC •Calibration Points: 1 point •Calibration Range: Measured value ±10ºC
11. Others	Hold Function: Manual or Automatic Stability Conditions: Low or High Calibration Due: 0 to 31 days Power Off: Manual or Automatic (10, 20, 30 minutes) Reset Function: Yes Memory: Stores up to 500 data sets Output: USB Communication Interface Connector: BNC, 6-pin Mini Plug Power Requirements: 3 x 1.5V "AA" Batteries Battery Life: Approximately 150 hours (Turn off the backlit) Dimensions: 170(L)x 85(W) x 30(H)mm Weight: 300g

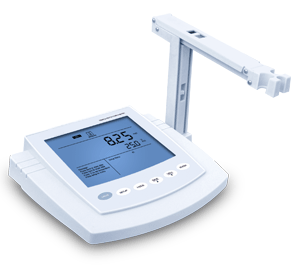

BENCH LAB DISSOLVED OXYGEN METER DO-980

　
DO-980 precision dissolved oxygen meter are used to measure amount of gaseous oxygen dissolved in a liquids.

Feature:
Two-point push-button calibration (Zero and 100%)
Automatic temperature compensation
Salinity and barometric pressure compensation
Multi-measurement units (mg/L/ppm; kPa/mmHg, etc.)
Automatic operation message prompts
Expanded memory stores and recalls up to 99 data sets
Built-in real-time clock stamps for stored data
USB Communication interface

Model	DO-980
Dissolved Oxygen Range	0.00~20.00mg/L or ppm
Resolution	0.01mg/L
Dissolved Oxygen Accuracy	±0.3mg/L
% Saturation of Oxygen	0.0~200.0%
Accuracy	±5.00%
Temperature Range	0.0~50.0ºC, 32~122ºF
Temperature Accuracy	±1ºC, ±1.8ºF
Temperature Compensation	0.0~40.0ºC, Automatic
Salinity Correction	0~35g/L
Barometric Pressure Correction	450~850mmHg, 60.0~112.5kPa
Calibration Points	1 or 2 Points, 100% in air or 0% in solution
Memory	99 data sets
Output	USB Communication interface
Power Requirements	DC9V, using AC adapters, 220VAC, 50Hz
Dimensions	210(L) x 188(W) x 60(H)mm

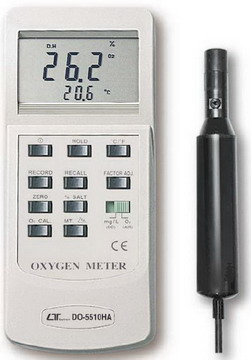

Dissolved Oxygen Meter DO-5510HA M a n u a l

FEATURES:
*The polarographic type oxygen probe with an incorpo-rated Temp. sensor, high precision measurement for Dissolved Oxygen (DO), Oxygen in air(O₂) & Temp. measurement.
* Heavy duty dissolved oxygen probe, probe head can connect with BOD bottle.
* Automatic Temp. Compensation from 0 to 50 ℃ for sensor probe.
* Build in " % SALT" & " Mountain Height" compensation adjustment button.
* Microprocessor circuit.
* Records Maximum, Minimum value.

Range:
     Dissolved Oxygen: 0-20.0 mg/L (liter).
    Oxygen in Air: 0-100.0 %
    Temperature 0 to 50ºC.
Accuracy:
     Dissolved Oxygen 0.4mg/L
    Oxygen in Air: 0.7% O₂
     Temperature 0.8ºC/1.5ºF
Resolution:
     Dissolved Oxygen 0.1mg/L
    Oxygen in Air: 0.1% O₂
    Temperature 0.1ºC

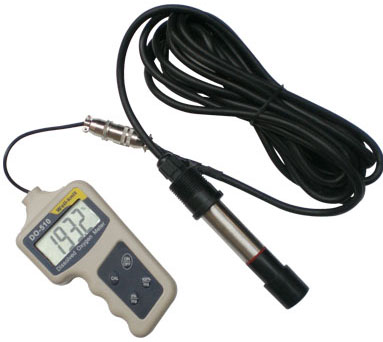

Dissolved Oxygen Meter DO-510

Range: Dissolved Oxygen: 0.00-19.99mg/L (liter).
Oxygen in Air: 0.0-255.0 %.
Accuracy: ±1.5% F.S.
Resolution: Dissolved Oxygen 0.01mg/L
Oxygen in Air: 0.1% O2
Temperature Compensation: 0 ~ 45ºC
Power Supply: DC 9V
Dimensions: 123 x 72 x 33mm

Dissolved Oxygen Meter DO-8401

Features:
■Measured DO &temperature can be displayed together
■Automatic power shutdown without operate for 20 minutes, battery saving
■Handheld design, easy to carry
■Low battery indicator
■Easy 100% D.O value calibration
■Automatic temperature compensation
■Backlight screen, easy to use in the shade
■Data can be transferred to the computer with the data line (RS232)

Technical Parameter
■Display type: LCD
■Measurement Range (in %): 0~199.9; Resolution: 0.1%
■Measurement Range (in ppm or mg/l): 0.00 ~ 19.99; Resolution: 0.01
■Accuracy: ±1.5% F.S
■Temperature Range: 0 ~ 30ºC
■Temperature Accuracy: ±0.5ºC
■Power supply: 4 x 1.5V batteries
■Weight: 150 grams
■Dimensions: 175 x 70 x 33mm
■Operating ambient temperature: 0 ~ +50ºC
■Relative humidity: 90% max

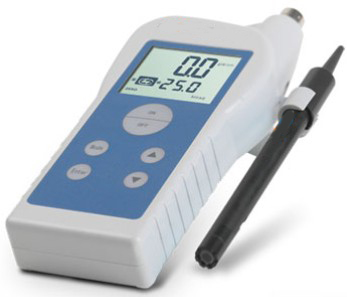

Dissolved Oxygen Meter DO-607A

FEATURES:

3/1/2LCD with blue-light
Automatic temperature compensation
Immediate response
Easy to carry
D.C. power supply: one piece of 9V battery
The electrode system is composed of polarographic oxygen electrode and temperature electrode

Range:
1. Range: Dissolved Oxygen: 0-20mg/L; Temp: 0-40ºC
2. Accuracy: Dissolved oxygen: ±0.3 mg/L±1bit (basic temperature); ±0.5mg/L±1bit (differ: ±10ºC from basic temperature);
Temperature: ±1ºC±1bit
3. Response time: ≤30s (90% response at 20.0ºC).
4. Stability of the meter: not over ±0.2mg/L ±1bit within one hour
5. Remaining current: ≤0.15mg/L
6. The range of automatic temperature compensation: 0-40ºC

Dissolved Oxygen Meter DO-608

FEATURES:

1. With the function of double displays of dissolved oxygen concentration value and temperature, dissolved oxygen saturation value and temperature
2.Measuring D.O. concentration, saturation, electrode current and temperature; With the functions of automatic temperature compensation and calibration of zero oxygen, full scale, atmosphere pressure and salinity.
3.The meter has the function of protection from electricity cutting off. With Measuring results can be stored, deleted, viewed and printed. At most 250 sets of data can be stored.
4. With wide screen LCD. It is easy to operate with the prompt facility. With PC panel of new material, thus the meter has good reliability.
5. With low power consumption design, with the functions of lack of voltage display, switching off automatically.
6.With RS-232 interface which is connected and with Model TP-16 printer to print measuring results or connected with computer to communicate.
7.Grade of the case protection is IP65, resistant to water and dirt, suitable for field operation
8.The electrode system is composed of polarographic oxygen electrode and temperature electrode.

Range:
1.Measuring range: Dissolved oxygen concentration: (0.00~19.99)mg/L; Dissolved oxygen saturation: (0.0~199.9)%; Temperature: (0~40.0)ºC.
2.Automatic temperature compensation range: (0.0~40.0)ºC.
3.Accuracy of the meter: D.O. concentration: ±0.3mg/L±1bit(basic temperature);±0.5mg/L (differ: ±15ºC from basic temperature); D.O. saturation : ±5.0% (basic temperature); ±10.0% differ: ±15ºC from basic temperature; Temperature: ±0.5ºC±1bit.
4.Repeatability of the meter: ≤0.2mg/L.
5.Stability of the meter: not over ±0.2mg/L within one hour.
6.Remaining current: ≤0.1mg/L.
7.Response time ≤20s (90% response at 20.0ºC).
8.Salinity calibrating range: (0.0~40.0)g/L.
9.IP65 protection grading

Dissolved Oxygen Controller DO-8600

Applications: Dissolved oxygen measure in industrial boiler inlet water, industrial ferment measure, water measure of environment protection
Features: Some of the data can be set, such as elevation, salinity etc; automatic temperature compensation Memory function in case of power off, no need to reserve a battery, data can be saved for more than 10 years Isolated, double channels 4~20mA output, digital communication terminal Pt 1000 temperature compensation component, with temperature control/communication function Double channels OCT configuration control output, with pulse frequency conversion output function, high/low limit alarm DC 24V power supply ,which meet the satety regulation even in damp site
Technical Data: Measure range: 0.00~19.99mg/L Resolution: 0.01mg/L 0.01% Accuracy: ±1.5% FS Automatic Temperature compensation: 0~45ºC Output signal: Isolated 4~20mA output Working environment temperature: 0~50ºC, Humidity: 90%RH max Control output mode: OC Contactor capacity: ≤80mA Power supply: DC 24V±15% Protection level: IP65 (when the back cover was covered) Outline dimension: 96 x 96 x 105mm (H x W x D) Hole size: 91 x 91mm (H x W) Fix mode: Panel mounting

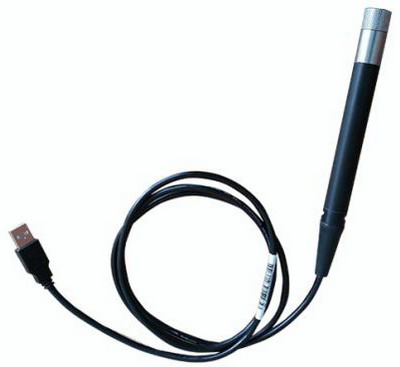

Laboratory Optical DO Sensor DO-102

Laboratory optical dissolved oxygen sensor is developed primary for scientific research and educational uses. The USB based sensor is designed as plug in and play sensor. It does not require a handheld unit or a controller. Just plug the senor into a computer or a Tablet, you will get readings in seconds.
Advantages of optical dissolved oxygen measurement · Easy use, no membrane, no electrolyte. · Long lifetime, maintenance free and less calibration. · No flow dependency and fast response. · Immune to electrical interference, no chemical interference.
Specifications Range: 0-20 mg/L or 0-200% sat Accuracy: +/-1% Response time: <10 sec Drifting: <1% per year Temperature Accuracy: +/- 0.2ºC Temperature and barometric pressure compensation: Build-in Automatic
Features: 1. USB connection: supporting USB2.0. No handheld meter is required. 2. Slim 16 mm design.

MANUAL DISC POLARIMETER SWXG-4 M a n u a l

Measuring Range	-180^o~ +180^o
Mini Scale	±0.05°
Accuracy	±0.05°
Reproducibility	≤0.05°
Tube Length	100mm 200mm
Light Source	Sodium Light 589.44nm
Wavelength	589.44nm
Power	AC220±22V/50Hz 20W; AC110/60Hz 20W
N.W.	7kg
Size	60cm×22cm×40cm
Alloy Disc

MANUAL DISC POLARIMETER LWXG-4

FULL-CIRCLE MANUAL POLARIMETER LWXG-4 manual polarimeter is ideal for determining concentration levels of samples for applications in the medical, educational, pharmaceutical, and cosmetic industries etc. Easy Measurement: The polarimeter with 589.44nm monochromatic sodium lamp. After powered on, the polarized light beam is immediately project on filter, polarizer etc. You can view the visual fields of brightness or shade through eyepiece. Rotate the vernier knob till the visual field to equal brightness. (Zero point) Put the sample tube in measuring field chamber. Rotate the vernier knob again, you can view equal brightness. Read the scale from magnifier that is measured value. Specific Optical Rotation Measurement: Specific optical rotation is constant of substance, you can measure it by 100mm glass tube when temperature of solution at 20^oC. Specification:		Purity Measurement: The polarimeter is ideal for determining purity of sample. If you want to know its purity, you need only measure its the angle of rotation and calculate it. Concentration Measurement: For some substance of known specific optical rotation, you can measure its the angle of rotation and calculate concentration according to formula. International Sugar Scale: According to international sugar scale, put the 26g pure sugar in solution, The angle of rotation of solution is 34.626^o. By the rules, you can calculate the purity of sugar. What's included: 100/200mm tube, Sodium lamp.

Measurement Range	-180^o~ +180^o
Scale Value	1^o
Vernier	0.05^o
Magnifier	3x
Light Source	Sodium Lamp
Wavelength	589.44nm
Tube Length	up to 200mm
Stable Time	10 minutes
Power Requirements	220VAC/50Hz
Dimensions	500(L)mm×135(W)mm×330(H)mm
Weight	5kg
Plastic Disc

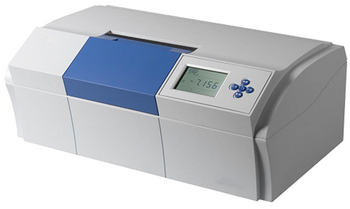

Semi-Automatic Polarimeter WXG-6

Features:
• High performance semiautomatic polarimeter is equipped with a 5.6 inches touch screen.
• Selectable four measurement modes, including the optical rotation, specific rotation, concentration and International Sugar Scale.
• LED light source effectively extends the working time of instrument.
• Built-in temperature sensor automatically senses temperature of the sample chamber.
• Auto-zero feature supports instrument returns to zero point by pressing the Return button.
• Selectable tube lengths (100/200mm) or manual enter the desired values.
• Zero correction allows adjusting the optical visual field to eliminate the zero error.
• Automatic Temperature Compensation improves measurement accuracy of instrument.
• 1 to 3 point calibration ensures accurate measured value over the entire range.
• Automatic message display helps user quickly begin using the instrument.
• Expanded memory stores and recalls up to 100 readings.
• Built-in real-time clock stamps stored data to meet GLP standard.
• Stored data can be transferred into computer by USB communication interface.
• On-screen operating manual details shows the polarimeter uses.
• Reset feature automatically resumes all parameters back to factory default options.

Specifications:
Measuring Range	±90, ±130°Z
Measuring Modes	Optical Rotation; Specific Rotation; Concentration; International Sugar Scale
Accuracy	±0.02^o ±0.05°Z
Light Source	LED
Optical Wavelengths	589.44nm
Stable Time	5 minutes
Tube Length	50/100/200mm
Temperature Range	0~100^oC
Temperature Accuracy	±0.5^oC
Memory	Stores up to 100 data sets
Output	USB Communication Interface
Power Requirements	220VAC/50Hz
Dimensions	550(L) x 300 (W) x 220(H)mm
Weight	7.5kg

AUTOMATIC POLARIMETER LWZZ-2A

LWZZ-2A automatic polarimeter is the basic scientific instrument used to measure angle of rotation, specific optical rotation of optically active substance. Automatic Measurement: LWZZ-2A built-in auto-controlling system. Power on the polarimeter, the system will search for zero point automatically. You need only put the sample tube in measuring field chamber, the polarimeter will display the angle of rotation. Auto-judge substance form levorotatory or dextrorotatory: The polarimeter can auto-judge compoundor form levorotatory or dextrorotatory. If there is negative measures value, that means is levorotatory substance, if appearing positive measures value, it means is dextrorotatory substance. What's included: 100/200mm tube, Sodium lamp.
		Reproducibility: In experiment, you need test a sample solution three times or more to ensure the accuracy of the measured value, you can press [ + ] or [ - ] key and the polarimeter will test again. The polarimeter not only can test the angle of rotation of substance and but can calculate its purity, concentration and percentage.
Measuring Range	-45^o~+45^o
Accuracy	±0.02^o
Reproducibility	±0.01^o
Resolution	0.005^o
Light Source	Sodium lamp
Optical Wavelengths	589.44nm
Stable Time	5 minutes
Tube Length	up to 200mm
Power Requirements	220VAC/50Hz
Dimensions	600(L)mm×300(W)mm×200(H)mm
Weight	25kg

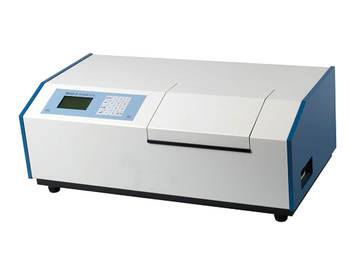

AUTOMATIC POLARIMETER YWZZ-3

Characteristics 1. Photoelectric test and microcomputer control 2. Measuring specific rotation, optical rotation, concentration and sugar degree 3. Automatic repetition-measurement for 6 times, and calculation of average value and means square root 4. RS232 interface
Specifications 1. Measurement range: -45~+45° 2. Accuracy: (0.01°+ measuring value 0.05%) 3. Repeatability: 0.003° 4. Display: LCD 5. Minimum indicating value: 0.001° 6. Monochromatic Light Source (Sodium Lamp): 589.44nm 7. Length of Test Tube (100mm and 200mm): 1 each 8. Weight (Gross): 32kg 9. Overall Dimensions: 730 x 450 x 370mm

AUTOMATIC POLARIMETER YWZZ-2S

Characteristics
1. Photoelectric test and microcomputer control
2. Measuring optical rotation and sugar degree
3. Storage of three times results
4. Calculation of average values
5. Measurement of dark-colored sample
6. RS232 interface

Specifications
1. Measurement range: -45~+45°, -120~+120°Z (Brix)
2. Accuracy: (0.01°+ measuring value 0.05%); (0.03°Z + measuring value 0.05%)
3. Minimum indicating value: 0.001°, 0.01°Z
4. Repeatability: sample transmittance: >1% 0.002° (0.006°Z)
5. Display: LCD
6. Monochromatic Light Source (Sodium Lamp): 589.44nm
7. Length of Test Tube (100mm and 200mm): 1 each
8. Weight (Gross): 36kg
9. Overall Dimensions: 730 x 450 x 370
10. Optional Accessories: Micro test tube (50mm)

AUTOMATIC POLARIMETER YWZZ-2B

Characteristics
1. Photoelectric test and automatic servomechanism control
2. Storage of three times results
3. Calculation of average values
4. RS232 interface

Specifications
1. Measurement range: -45°~+45°
2. Accuracy: 0.02° (-15°≤optical rotation≤15°); 0.05° (optical rotation< or optical rotation>15°)
3. Repeatability: 0.01°
4. Display: LCD
5. Minimum indicating value: 0.001°
6. Monochromatic Light Source (Sodium Lamp): 589.44nm
7. Length of Test Tube (100mm and 200mm): 1 each
8. Weight (Gross): 32kg
9. Overall Dimensions: 730 x 450 x 370mm

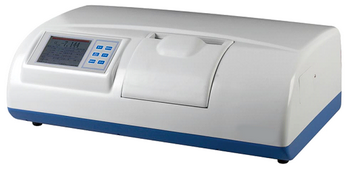

AUTOMATIC POLARIMETER YSGW-3

Characteristics
1. Need not prewarm when turning on.
2. Measuring specific rotation, optical rotation, sugar degree and concentration
3. Automatic repetition-measurement for 6 times, and calculation of average value and means square root
4. Peltier principle to control the temperature
5. Measurement of dark-colored sample
6. USB & RS232

Specifications
1. Measurement range: -89°~+89°
2. Accuracy: ±0.01° (-15° ≤optical rotation ≤+15°); ±0.02° (optical rotation<-15° or optical rotation> +15°)
3. Minimum indicating value: 0.001°, 0.01°Z
4. Repeatability: sample transmittance >1% 0.002° (0.006°Z)
5. Display: Touch Screen
6. Light Source: LED
7. Operation Wavelength: 589.3nm
8. Temperature control range: 15-30ºC
9. Accuracy: ±0.5ºC
10. Length of Test Tube (100mm and 200mm): 1 each
11. Constant Temperature test tube: 1pc
12. Weight (Gross): 37kg
13. Overall Dimensions: 850 x 470 x 380mm
14. Optional Accessories: Micro test tube (50mm)

AUTOMATIC POLARIMETER YSGW-2

Characteristics
1. Need not pre-warm when turning on.
2. Measuring specific rotation, optical rotation, sugar degree and concentration
3. Automatic repetition-measurement for 6 times, and calculation of average value and means square root
4. Peltier principle to control the temperature
5. Measurement of dark-colored sample
6. USB & RS232

Specifications
1. Measurement range: -45°~+45°
2. Accuracy: ±0.01° (-15° ≤optical rotation ≤+15°); ±0.02° (optical rotation<-15° or optical rotation> +15°)
3. Minimum indicating value: 0.001°, 0.01°Z
4. Repeatability: sample transmittance＞1% 0.002° ( 0.006°Z)
5. Display: Touch Screen
6. Light Source: LED
7. Operation Wavelength: 589.3nm
8. Temperature control range: 18-30ºC
9. Accuracy: ±0.5ºC
10. Length of Test Tube (100mm and 200mm): 1 each
11. Constant Temperature test tube: 1pc
12. Weight (Gross): 37kg
13. Overall Dimensions: 850 x 470 x 380mm
14. Optional Accessories: Micro test tube (50mm)

AUTOMATIC POLARIMETER YSGW-1

Characteristics
1. Need not pre-warm when turning on.
2. Measuring specific rotation, optical rotation, sugar degree and concentration
3. Automatic repetition-measurement for 6 times, and calculation of average value and means square root
4. Sample chamber adopts constant temperature designing in order to decrease the temperature heating effect on measurement
5. Measurement of dark-colored sample
6. USB interface

Specifications
1. Measurement range: -45°~+45°, -120°~+120°Z (Brix)
2. Accuracy: (0.005° + measuring value 0.03%); (0.015°Z + measuring value 0.03%)
3. Minimum indicating value: 0.001°, 0.01°Z
4. Repeatability: sample transmittance＞1% 0.002° ( 0.006°Z)
5. Display: LCD
6. Light Source: LED (2.4V, 1W, 5000hours)
7. Operation Wavelength: 589.3nm
8. Length of Test Tube (100mm and 200mm): 1 each
9. Weight (Gross): 32 kg
10. Overall Dimensions: 850 x 470 x 380mm
11. Optional Accessories: Micro test tube (50mm)

AUTOMATIC POLARIMETER SWZZ-2A & SWZZ-2B

Model Number	SWZZ-2A	SWZZ-2B
Measuring Range	-45^o~+45^o
Mini Scale	±0.005°
Accuracy	±(0.01°+ Measure Value ×0.05%)
Reproducibility	≤0.007°
Sample Transmittance	≥10%
Light Source	Sodium Light
Wavelength	589.44nm
Power	AC220±22V 50Hz±1Hz 100W, 110V/60HZ
N.W.	28kg
Data Output	N/A	RS232
Size	72cm×44cm×35cm

AUTOMATIC POLARIMETER SWZZ-1S & SWZZ-2S

Model Number	SWZZ-1S	SWZZ-2S
Measuring Range	-45^o~+45^o
Mini Scale	±0.001°
Accuracy	±(0.01°+ Measure Value ×0.05%)
Reproducibility	≤0.002°
Sample Transparence	≥1%
Light Source	Sodium Light
Wavelength	589.44nm
Power	AC220±22V 50Hz±1Hz 100W, 110V/60HZ
N.W.	28kg
Data Output	N/A	RS232
Size	72cm×44cm×35cm

AUTOMATIC POLARIMETER FOR SUGAR SWZZ-1SS & SWZZ-2SS

Model Number	SWZZ-1SS	SWZZ-2SS
Measuring Range	±120°Z
Mini Scale	±0.01°Z
Accuracy	±(0.03°+ Measure Value x 0.05%)
Reproducibility	≤0.02°
Sample Transparence	≥1%
Light Source	Sodium Light
Wavelength	589.44nm
Power	AC220±22V 50Hz±1Hz 100W, 110V/60HZ
N.W.	28kg
Output	N/A	RS232
Size	72cm×44cm×35cm

Dual Range AUTOMATIC POLARIMETER SWZZ-3

Model Number	SWZZ-3
Measuring Range	±45°; ±120°Z (For Sugar)
Mini Scale	±0.001°; ±0.01°Z (For Sugar)
Accuracy	±(0.01°+ Measure Value ×0.05%) ; ±(0.03°Z+ Measure Vale x 0.05%)
Reproducibility	≤0.002°; ≤0.02°Z
Sample Transparence	≥10%
Light Source	Sodium Light
Wavelength	589.44nm
Power	AC220±22V 50Hz±1Hz 100W
Power	AC110V/60HZ
N.W.	28kg
Output	RS232
Size	72cm×44cm×35cm

New LED DUAL RANGE AUTOMATIC POLARIMETER WSG-2D and WSG-3D

Model Number	WSG-2D	WSG-3D
Measuring Range	±45°; ±120°Z (For Sugar)
Mini Scale	±0.005°; ±0.01°Z	±0.001°; ±0.01°Z
Accuracy	±0.01°+ Measure Value ×0.05%	±0.01°+ Measure Value ×0.03%
Accuracy	±0.03°Z+ Measure Vale x 0.05%	±0.03°Z+ Measure Vale x 0.03%
Repeatability	≤0.007°; ≤0.02°Z	≤0.002°; ≤0.02°Z
Sample Transparence	≥10%	≥1%
Light Source	LED + Light Filter
Light Life	20,000 hours mini
Power	AC220±22V 50Hz±1Hz 100W; AC110V/60HZ
N.W.	28kg
Data Output	RS232
Size	72cm×44cm×35cm

POLARIMETER OPTIONAL PARTS


Sodium Lamp 589.44nm SL589	Sample Tube 100mm ST100	Sample Tube 100mm ST200

Sample Tube 100mm SD100	Sample Tube 200mm SD200	Sample Tube 100mm SP100

Sample Tube 200mm SP200	Sample Tube 50mm SW50	Standard Quartz Tube ±5° SQ05

Standard Quartz Tube ±15° SQ15	Standard Quartz Tube ±35° SQ35

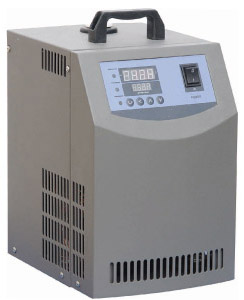

Lab Recirculating Chiller LX-150
Temperature Set Range:	5 ~ 35ºC
Accuracy:	±0.1ºC
Cooling Power:	150W@20ºC
Recirculating Pressure:	0.4Bar
Max Output:	10L/Minute
Tank Capacity:	1.0L
Size:	230x280x380mm
Noise:	50-55dB
Power:	AC220V/50HZ, 5A; 110V/60HZ
Net Weight:	18Kg
