Surface Roughness Tester

SURFACE Roughness tester

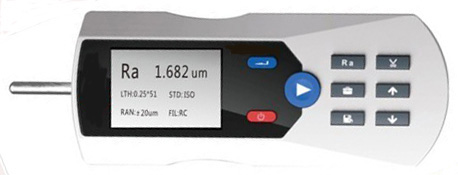

Professional Surface Roughness Tester SRT-2000

Features:
1. With ARM processor, the measurement speed is fast, and the computation time is short.
2. The real-time operating system was transplanted to support multi task parallel processing.
3. Built in wireless module to support wireless printing and wireless data transmission
4. Some models use 128 x 64 FSTN dot matrix display, digital / graphic display
5. Some models use 2.2 inch LCD screen, with a resolution of 320*240, support 260 thousand colors
6. Display information rich, intuitive, can display all parameters and graphics
7. Compatible with ISO, DIN, ANSI, JIS, a number of national standards
8. Can display the charging process instructions, the operator can always understand the degree of charge
9. When the backlight is not open, the working time is more than 10 hours.
10. Large capacity data storage, the machine FLASH can store 200 sets of original data and waveform
11. Scalable Micro SD card storage, maximum of up to 16G
12. SD card format can be selected for the user manual for users on the roughness of the instrument directly
13. Compatible with a variety of standard sensors, deep groove sensor, surface sensor and small hole sensor
14. Sensor structure is optimized, and the measured value is more stable.
15. Embedded software upgrade can be realized by using serial interface

Main Specifications
1. Measurement range: support Ra, Rz, Rq, Rt, Rp, Rv, R3z and other 16 parameters
2. Ra, Rq: 0.005-16um
3. Rz, Ry, Rt ,Rp ,Rv ,Rmax, R3z ,Rz (JIS): 0.02-160um
4. RS, RSm: 1mm
5. Rmr: 0-100% (%Rt)
6. Rsk: 0-100%

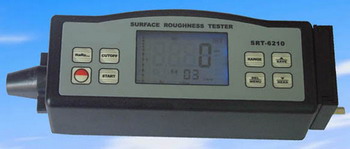

Surface Roughness Tester SRT-6210

FEATURES This instrument is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters. * Multiple parameter measurement: Ra, Rz, Rq, Rt * Highly sophisticated inductance sensor * Four wave filtering methods : RC, PC-RC, GAUSS and D-P * Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C interface. * Manual or automatic shut down. * The tester can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
SPECIFICATIONS Display: 4 digits, 10 mm LCD, with blue backlight Parameters: Ra, Rz, Rq, Rt Measuring Range: Ra, Rq: 0.005-16.00um/0.020-629.9uinch; Rz, Rt: 0.020-160.0um/0.078-6299uinch Accuracy: Not more than +-10% Fluctuation of display value: Not more than 6% Sensor: Test Principle: Inductance type; Radius of Probe Pin: 5μm; Material of Probe Pin: Diamond; Dynamo-measurement of Probe: 4mN(0.4gf); Probe Angle: 90˚; Vertical Radius of Guiding Head: 48mm Maximum driving stroke: 17.5mm/0.7inch Cutoff length (l): 0.25mm / 0.8mm / 2.5mm optional Evaluation length: 5l Driving speed: sampling length = 0.25mm Vt=0.135mm/s sampling length = 0.8mm Vt=0.5mm/s sampling length = 2.5mm Vt=1mm/s returning Vt=1mm/s Profile digital filter Filtered Profile: RC Filtered Profile: PC-RC Filtered Profile: Gauss Non-Filtered Profile: D-P Evaluation length : 5 cut-off Power Li-ion battery: rechargeable Operating conditions: Temp. 0 ~ 50℃, Humidity <80% Size：140x57x48 mm (5.5x2.2x1.9 inch), Weight: about 420 g
Optional Parts 1. Software and Cable for RS232C 2. Extension Rod 3. Measurement Stand

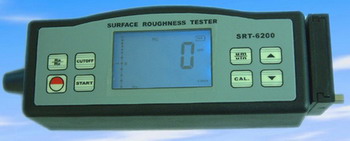

Surface Roughness Tester SRT-6200

FEATURES This instrument is compatible with four standards of ISO, DIN, ANSI and JIS and is widely used in production site to measure surface roughness of various machinery-processed parts, calculate corresponding parameters according to selected measuring conditions and clearly display all measurement parameters. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides
along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD. * Very easy to operate * Multiple parameter measurement: Ra, Rz * Highly sophisticated inductance sensor * Built-in lithium ion rechargeable battery and control circuit with high capacity * Small in size, light in weight and easy to use * Can communicate with PC computer for statistics, printing and analysing by the optional cable and the software for RS232C interface. * Manual or automatic shut down.
SPECIFICATIONS Display: 4 digits, 10 mm LCD, with blue backlight Parameters: Ra, Rz Display Range: Ra: 0.05-10.00um/1.000-400.0uinch; Rz: 0.020-100.0um/0.780-4000uinch Accuracy: Not more than 10% Fluctuation of display value: Not more than 6% Sensor : Test Principle: Inductance type; Radius of Probe Pin: 10um; Material of Probe Pin: Diamond Measurement Force of Probe: 16mN(1.6gf); Probe Angle: 90° Vertical Radius of Guiding Head: 48mm Maximum driving stroke: 17.5mm/0.7inch Cutoff length (l): 0.25mm / 0.8mm / 2.5mm optional Evaluation length: 1~5 cut off optional Driving speed: sampling length = 0.25mm Vt=0.135mm/s sampling length = 0.8mm Vt=0.5mm/s sampling length = 2.5mm Vt=1mm/s returning Vt=1mm/s Resolution : 0.001μm if reading ＜10μm; 0.01μm if 10μm≤reading＜100μm; 0.1μm if reading ≥100μm Power Li-ion battery: rechargeable Operating conditions: Temp. 0-50℃ Humidity: <80% Size: 140x57x48 mm (5.5x2.2x1.9 inch) Weight: about 420 g

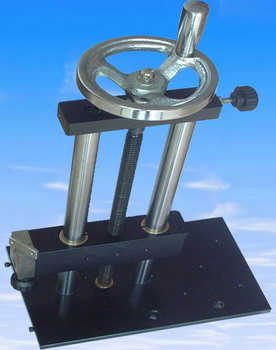

Optional Parts 1. Software and Cable for RS232C 2. Extension Rod 3. Measurement Stand	Optional Measurement Stand

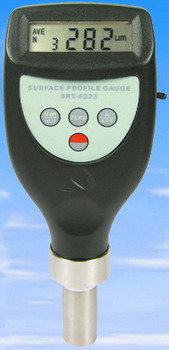

Surface Roughness Tester SRT-6223

Applications: Specially used to take accurate measurement of the peak-to-valley height of the surface profile of the surface profile of blast cleaned surfaces.
Specifications:
Display: 4 digits, LCD
Range: 0 µm to 800 µm (0 mils to 30 mils)
Accuracy: ±5% or ±5 µm, (whichever is the greater)
Resolution: 1µm (0.1 mils)
Metric and Imperial switchable
PC interface: RS232C
Measurement speed: >30 readings per minute
Weight: 280g
Dimensions: 162 x 65x 28 mm (6.4 x 2.6 x 1.1 inch)
Operating temperature: 0°C to 50°C, <80%RH
Case: High impact ABS
Batteries: 4 x 1.5v (AAA) battery
Standard accessories included: Carrying case: 1 pc; Operation manual 1 pc.
Optional accessory: Cable and software for RS232C

Surface Roughness Tester MR-110

Features:
1. The roughness of metal and non-metallic surface
2. Pocket-size & economically price
3. Large measuring range suitable for most materials
4. Features external calibration at keyboard
5. Optimized electric circuit design with transducer structure-design, high integrate power, driver and display.
6. Select freely with Ra, Rz, Rq, Rt parameters.
7. It could test ex-circle, flat surface, conical surface and also test groove with length and width larger than80*30mm
Specifications:
1. Testing parameters (µm): Ra, Rz, Rq, Rt
2. Stroke length (mm): 6
3. Sample length (mm): 0.25, 0.80, 2.50
4. Evaluation length (mm): 1.25,4.0
5. Measuring range (µm) Ra: 0.05 ~ 10.0; Rz: 0.1 ~ 50
6. Error: ±15%
7. Variability：＜12%
8. Transducer contacting pin round diameter and angle：
9. Contacting pin round diameter: 10µm±1µm
10. Battery: 3.7V Li
11. Size: 106 mm×70 mm×24 mm
12. Weight: 200g
13. Sensor needle static force and its rate of change: Stylus static force: ≤ 0.016N; Force measuring rate of change: ≤ 800N/m
14.Working conditions: Temperature:-20℃～40℃; Relative humidity: <90%

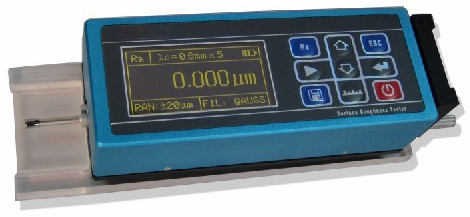

Surface Roughness Tester MR-210

Functions and features:
1. Electromechanical integration design, small volume, light weight, easy to use;
2. Using DSP chip to control and data processing, high speed, low power consumption;
3. Large range, parameters RX, Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr;
4. 128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
5. Display information rich, intuitive, can display all the parameters and graphics;
6. Compatible with ISO, DIN, ANSI, JIS national standards;
7. Built-in lithium ion rechargeable battery and a charging control circuit, high capacity, no memory effect;
8. Residual quantity indicator icon, prompting the user to charge;
9. Display of the charging process instructions, the operator can understand the degree of charge
10. Working time more than 20 hours of continuous work
11. Large capacity data memory, can store 100 groups of original data and waveform.
12. Real-time clock settings and display, convenient data recording and storage
13. With automatic dormancy, automatic shutdown and power saving function
14. Reliable control motor to go dead circuit and software design
15. Measurement information display, menu prompt information, false information and switch machine and other tips that information;
16. Full metal shell design, sturdy, compact, portable, high reliability.
17. Can be in English freely switch
18. Can be connected to a computer and printer;
19. Optional sensor surface, hole sensor, measuring platform, sensor, an extension rod and other accessories.

Specifications:
1. The maximum driving trip: 17.5mm/0.7inch
2. Indicating error: Not more than ±10%
3. Variation of indication: Not more than 6%
4. The measured profile Roughness, waviness, the original contour
5. Parameter: Ra (0.005μm ~ 16μm), Rz (0.02μm ~ 160μm), Rq, Rt, Rp, Rx, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr.
6. Filter RC,PCRC,Gauss,ISO13565
7. The sampling length L 0.25mm,0.8mm,2.5mm,8mm
8. Evaluation length L (1-5)l
9. Internal storage capacity 100 groups of original data
10. External input / output interface USB
11. Electric source Built-in rechargeable lithium ion battery or external power adapter
